▪ medium Format, high SPL, variable dispersion
▪ highly reliable cone transducer with 3,5” Voice Coil
▪ 1,4-inch N-Dym Hi Driver with 3” Voice Coil on rotatable horn
▪ (hxv) 50°x50° versions available
▪ high efficient and optimised frequency dividing network with HP RMS limiter
▪ audio Bandwidth 60Hz – 20KHz, SPL Peak >136dB/1m
▪ can be operated without DAL Control & Drive System

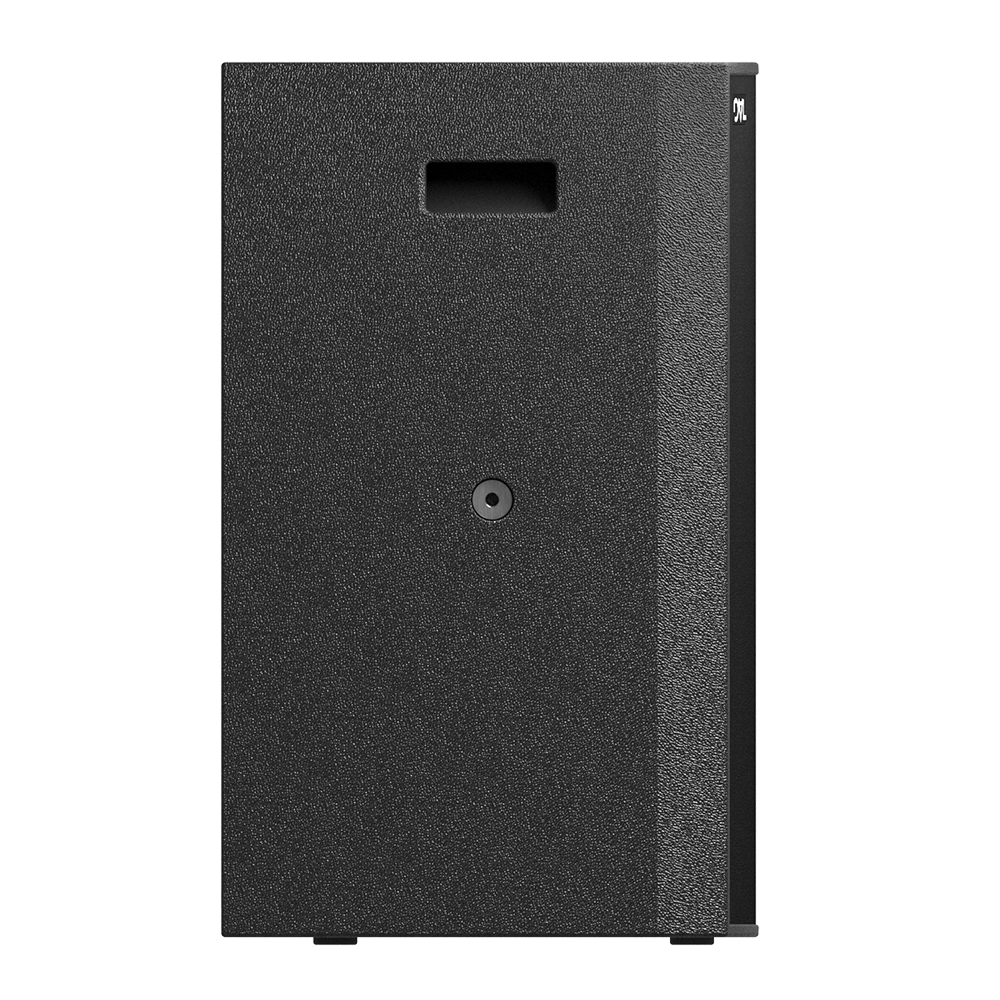

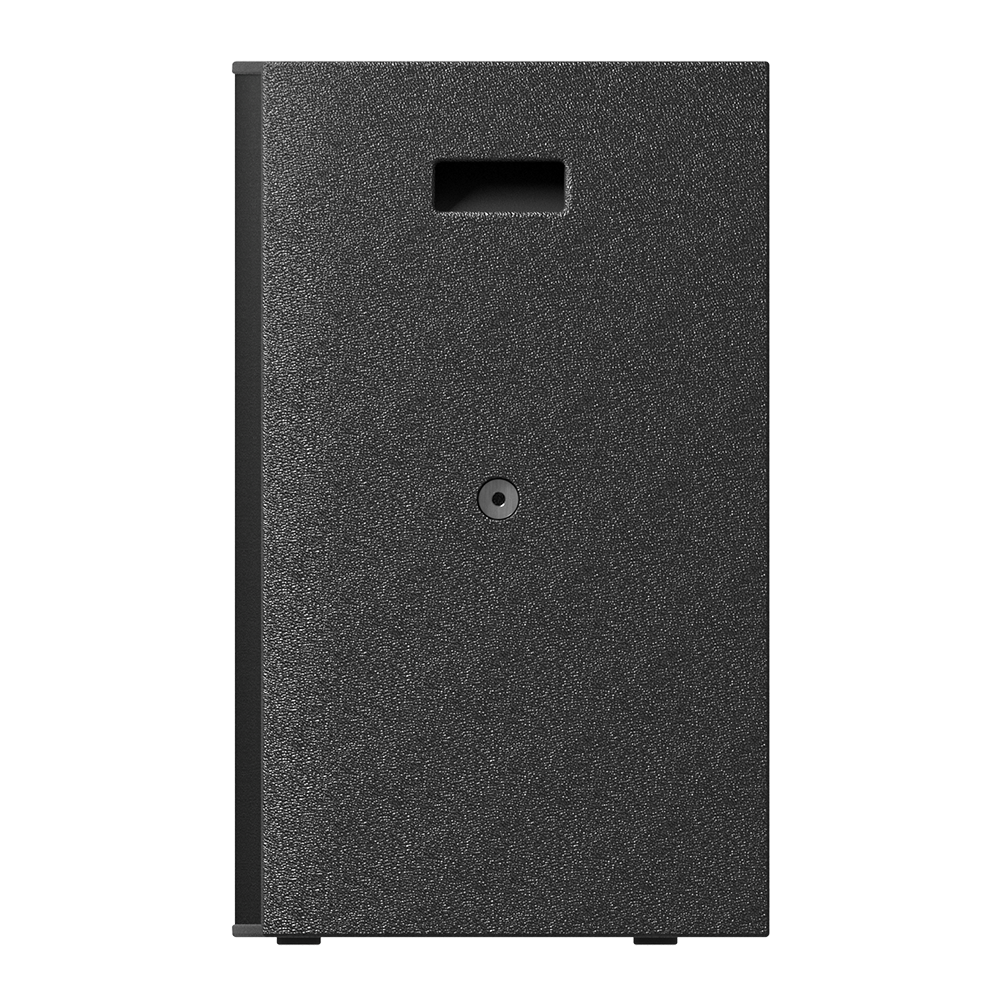

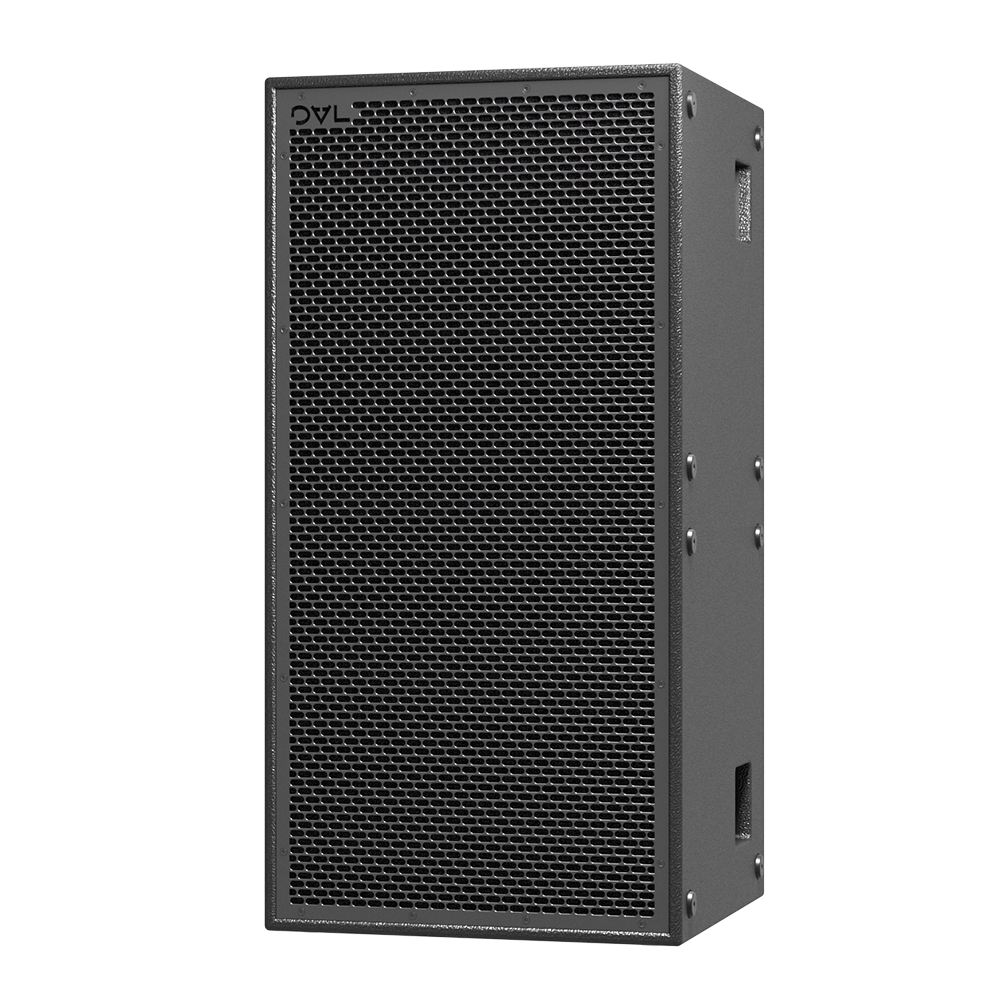

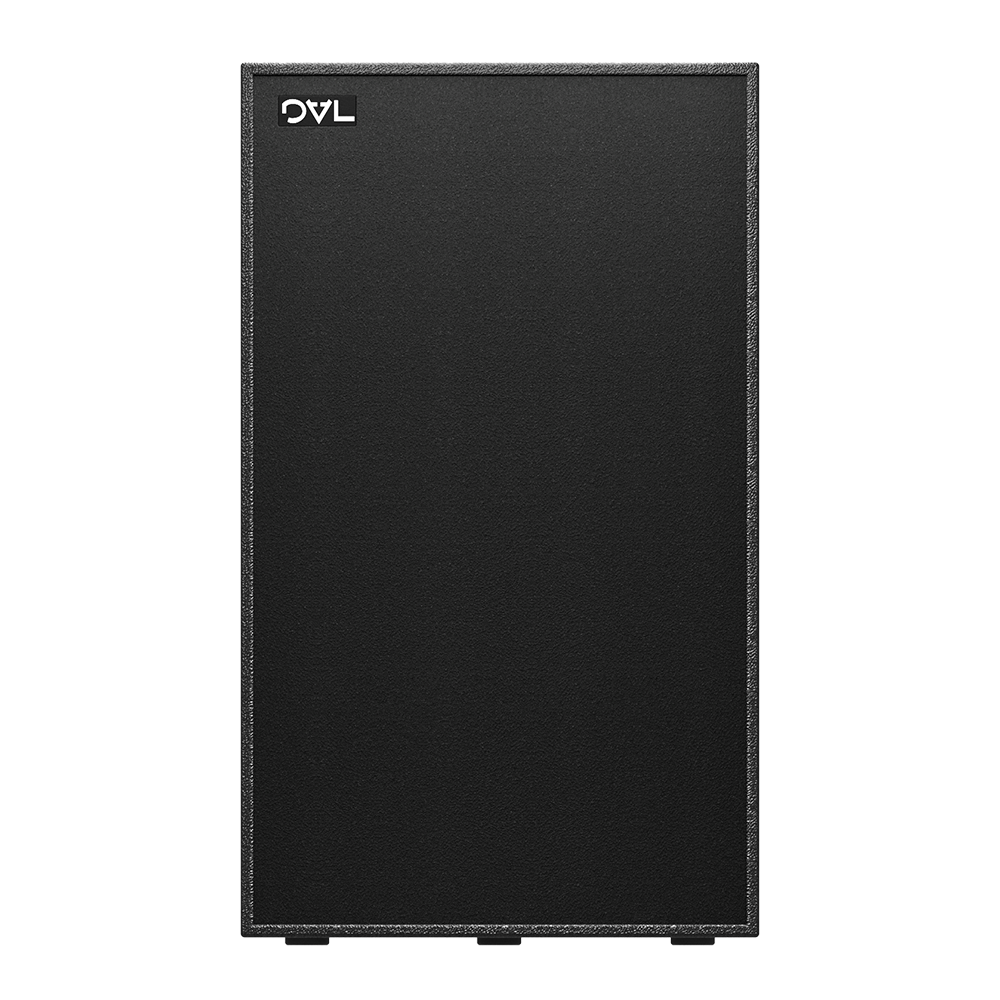

The i12N-80 and the i12N-50 systems are medium sized 2-way constant coverage point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with fine textured paint finish. The Variants providing different horizontal and vertical coverage angels of 80°x 50° (h x v i12N80) an 50°x50° (h x v i12N-50). Please note that their horns are not interchangeable due to different passive frequency dividing networks. The system is protected by a robust protective grille with foam cover . Three integrated handles are provided for an easier handling. The i12N system is primarily intended for fixed installation, but can be ordered with PU coating for mobile use. In stand-alone or spaced array operation, it can be used as a main, support or effect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission. For low end support, the DAL Sub-Low systems, BR118 and BR218 are suitable.
Featuring an efficient 12"cone driver with 3.5" voice coil and an 1,4” Ndym Hi driver with 3" voice coil on a rotatable horn, the i12N system provides an audio bandwidth of 50Hz - 20KHz with a Peak power handling of 1400W.The i12N systems can be operated without the DAL Control & Drive Systems. The passive frequency dividing network has an integrated (RMS) protection limiter for the high frequency driver on board. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure levels. The DAL Control & Drive Systems provide different settings for the operation of i12N combinations. The i12N-80 offers a wide horizontal dispersion for stand-alone operation.The i12N-50 is also suitable for tight clustering and arraying with a horizontal dispersion (h x v 2 x 50° x 50°).
|
