▪ Unit components: 2 × 6.5 "long offset tapered neodymium magnetic sensor, 1.5" voice coil
▪ Unit components: 1 × 1.4 "Compressed neodymium magnetic driver, 3." voice coil
▪ Support DAL Acoustics. speaker 3D sound field database modeling
▪ Frequency response: 80Hz-18KHz, (- 3dB)
▪ Maximum sound pressure level: 133dB
▪ Coverage angle: 110 ° horizontal × 10 ° vertical
▪ Rated power: 300w Low/70w High electronic frequency division
▪ Rated impedance: 16 Ohm
▪ Connection: 2 x NL4MP Neutrik Speakon
▪ Box material: black wear-resistant polyurea paint coating (customizable color)

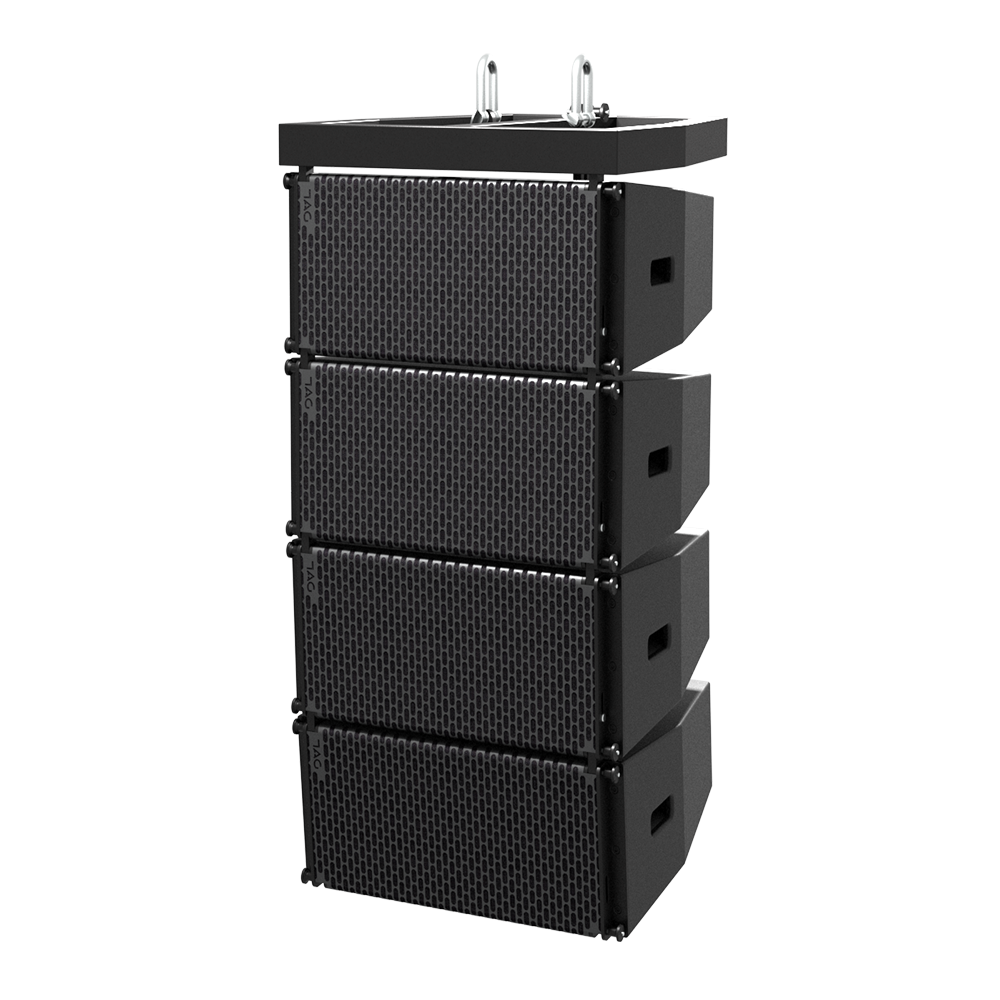

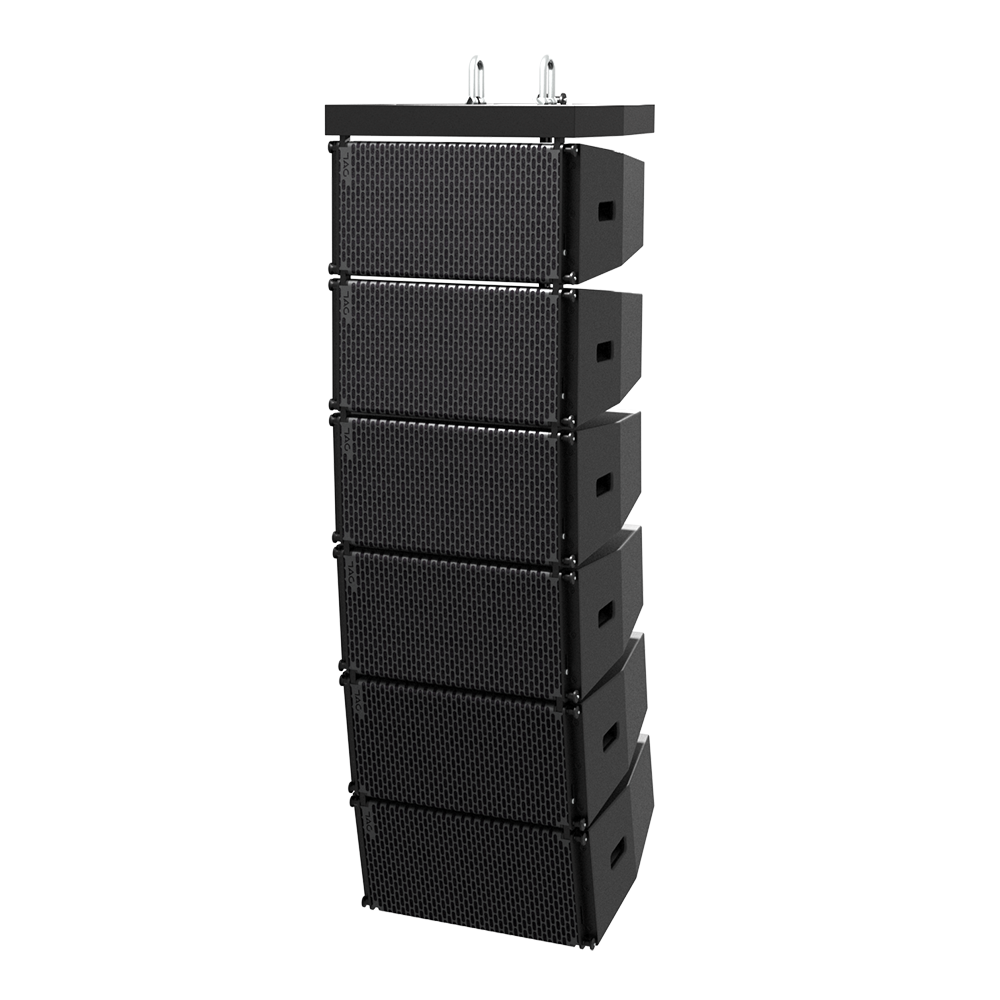

GT/GS system adopts passive non-cardioid design, including 2x6.5" / 2x10" low frequency N-Dym cone transducer, a 1.4" throat and 3.0" voice coil high frequency compression driver, high frequency compression driver The units come with dedicated waveguides, and the GT and GS line arrays are fixed-mount versions suitable for medium to large scale sound reinforcement systems. The GS line array loudspeaker module produces a horizontal 110° over the entire operating frequency bandwidth. Allows the opening angle between the loudspeakers to be adjusted from 0° to 10° in 1° increments to provide a consistent, uniform and very accurate horizontal coverage angle. Allows the speaker to maintain seamless directivity control from the lowest frequency to 18kHz.

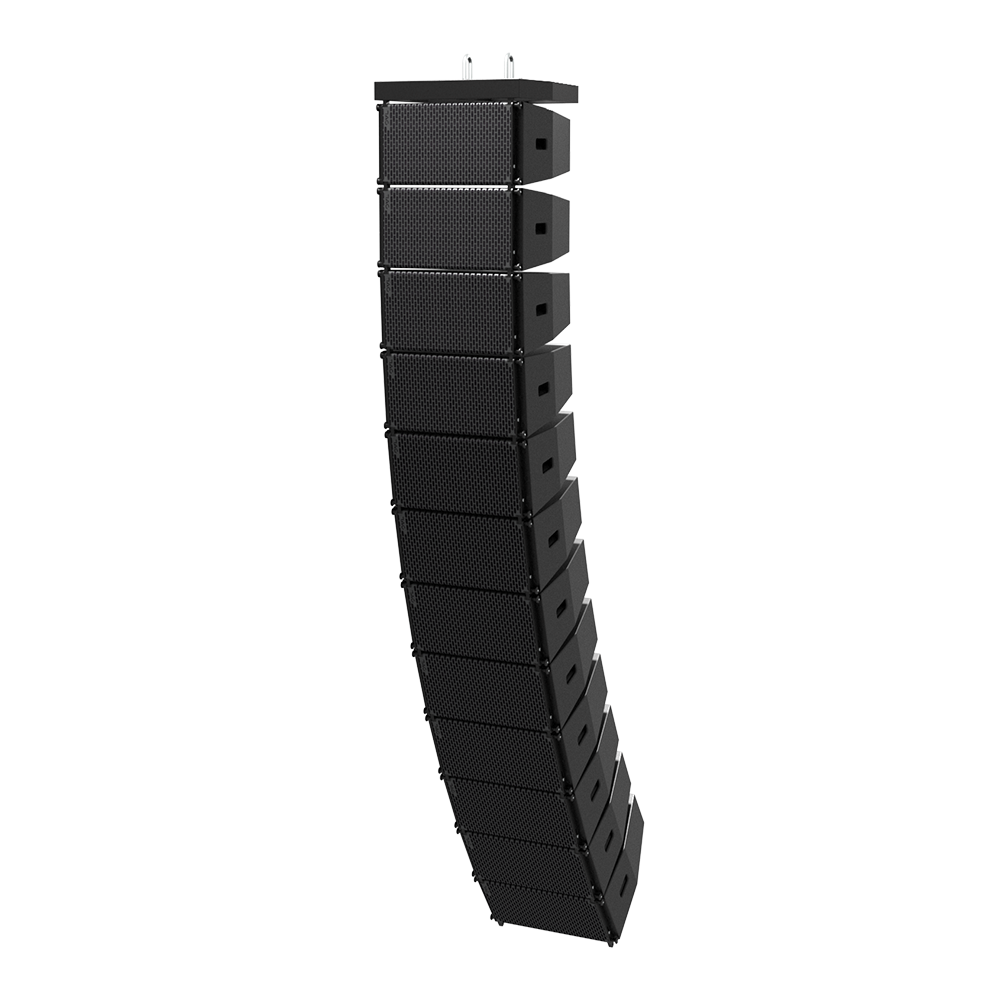

Specific suspension solutions to meet the specific requirements of stadium applications, up to 24 boxes can be installed in tension mode with GTC/GSC pylons.
|
