▪ Unit components: 2 × 10 "long offset tapered neodymium magnetic sensor, 3" voice coil, front
▪ Unit components: 2 × 10 "long offset tapered neodymium magnetic sensor, 3" voice coil, side
▪ Unit components: 1 × 2 "compressed neodymium magnetic driver, 3" voice coil
▪ Support DAL Acoustics 3D Sound Field Database Modeling of Speakers
▪ Frequency response: 80Hz-18KHz, (- 3dB)
▪ Maximum sound pressure level: 138dB
▪ Coverage angle: 110 ° horizontal × 10 ° vertical
▪ Rated power: 500w Low/120w High electronic frequency divider
▪ Rated impedance: 8 Ohm
▪ Connection: 2 x NL4MP Neutrik Speakon
▪ Box material: black wear-resistant polyurea paint coating (customizable color)
The GTC/GSC features full-bandwidth cardioid performance, reducing spillover effects on open mic pickups on stage; improving the clarity and sound of individual instruments; and reducing mid-frequency coloration in venues as well as during broadcast and recording feeds. It also gives monitor engineers more control, especially for low-mid and low-frequency sounds.
The cardioid line array system provides very quiet behind the stage, greatly reduces the diffusion, reflection and disturbance of the low-frequency part at the side and rear of the speaker, and avoids turbidity and resonance caused by excessive low-frequency divergence. GTC/GSC can be said to be a system that can truly represent full-band directivity control. As DAL has always insisted, the WaveLine system offers more art, less noise.

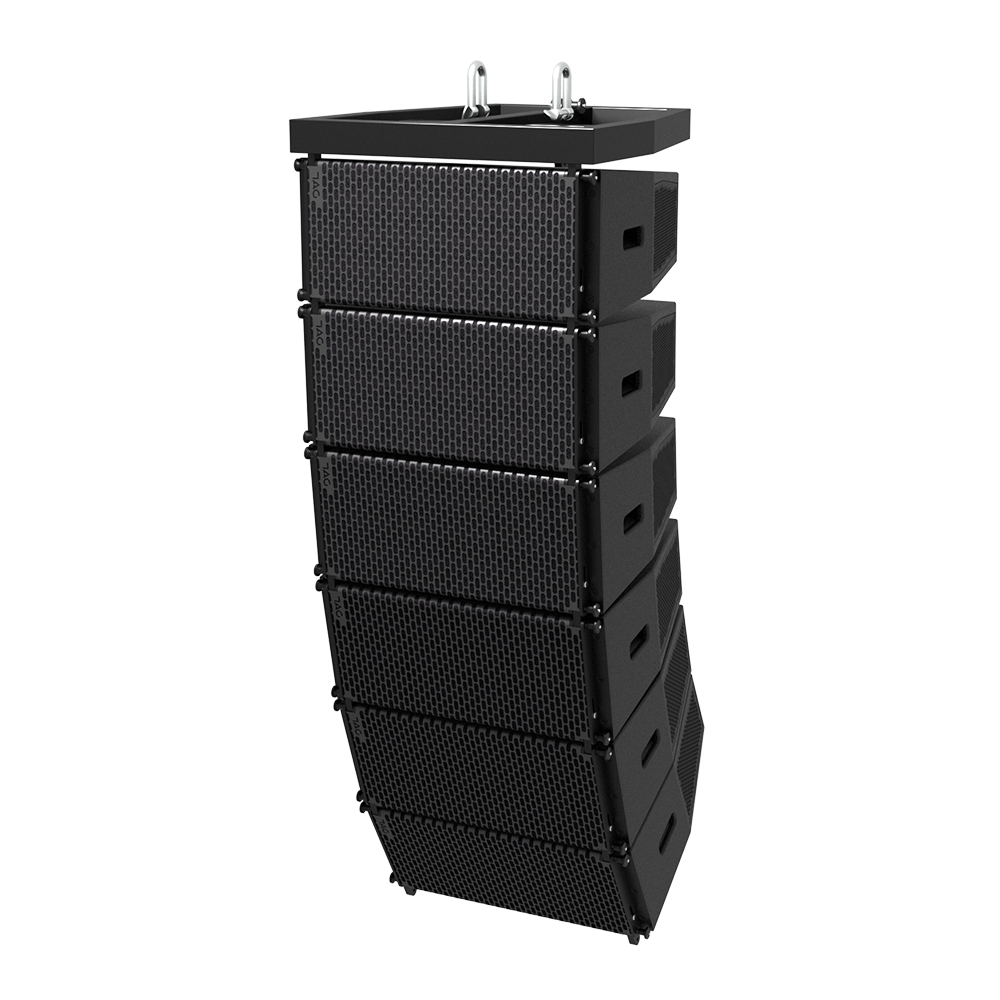

Specific suspension solutions to meet the specific requirements of stadium applications, up to 24 boxes can be installed in tension mode with GTC/GSC pylons.
GTC two lateral 6.5" neodymium magnet low frequency drivers
GSC two lateral 10" neodymium magnet low frequency drivers
|
