S15N

Vertical Convertabel Point Source, 2-way passive High Power Point Source System

▪ medium Format, high SPL, variable dispersion

▪ 1x 15" N-Dym cone transducer with 4" voice coil

▪ 2x 1,4" N-Dym Hi-driver with 3" voice coil

▪ 90° x 20° Vertical arrayed with up to 90° x 60° (H x v)

▪ audio Bandwidth 45Hz – 15KHz, SPL Peak >144dB/1m

▪ can be operated without DAL Control & Drive System

▪ allows three of S15N on one amp channel

Product description

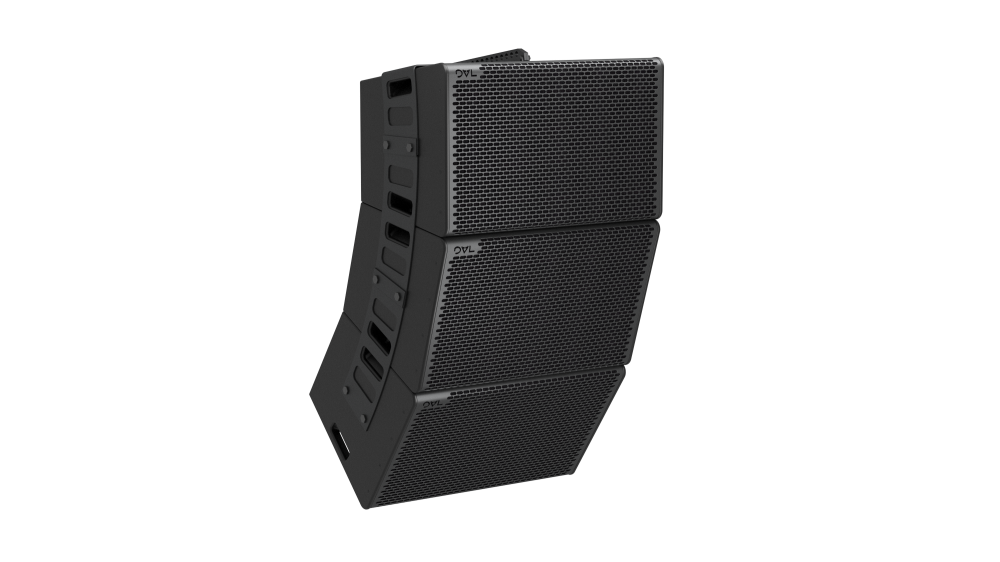

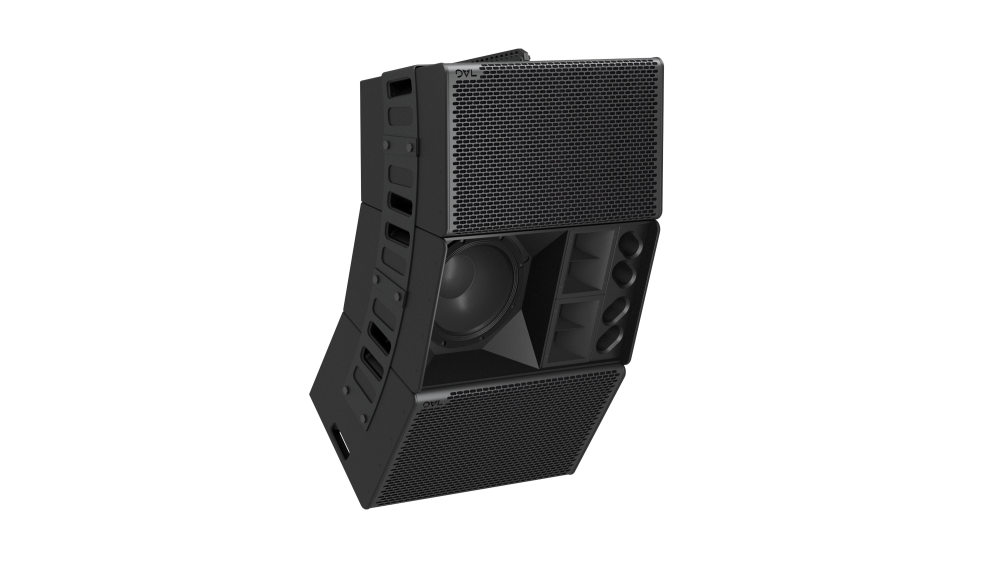

The S15N system is are larger 2-way vertical converted point sourc providing a front loading for the cone transducer to extend the constant coverage into the mid frequency band. This in order to expand an optimized transmission for medium to longer throw applications in vertical stacked or rigged operations. The front loading does not effect the low frequency band covered by the S15N but will equalized to flat down to its low end with close coupling of 3 systems in a vertical converted system. Operation is simplified with an optimized passive frequency dividing network incl. Hi Driver RMS protection. The ported cabinet is made of waterproof glued plywood with a durable PU coating. The S15N provides a horizontal and vertical coverage angel of 90°x 20° (h x v). The S15N system is primarily intended for touring use, but can be ordered with fine textured varnish paint for fixed installation use. In stand-alone or spaced array operation, it can be used as a support or (side-) fill speaker. Due to its neutral reproduction characteristics and the very high maximum SPL Level, it is equally suitable for speech and music transmission. For low end support, the DAL SubLow systems, BR118 and BR218, BB218 and BB118 are suitable.

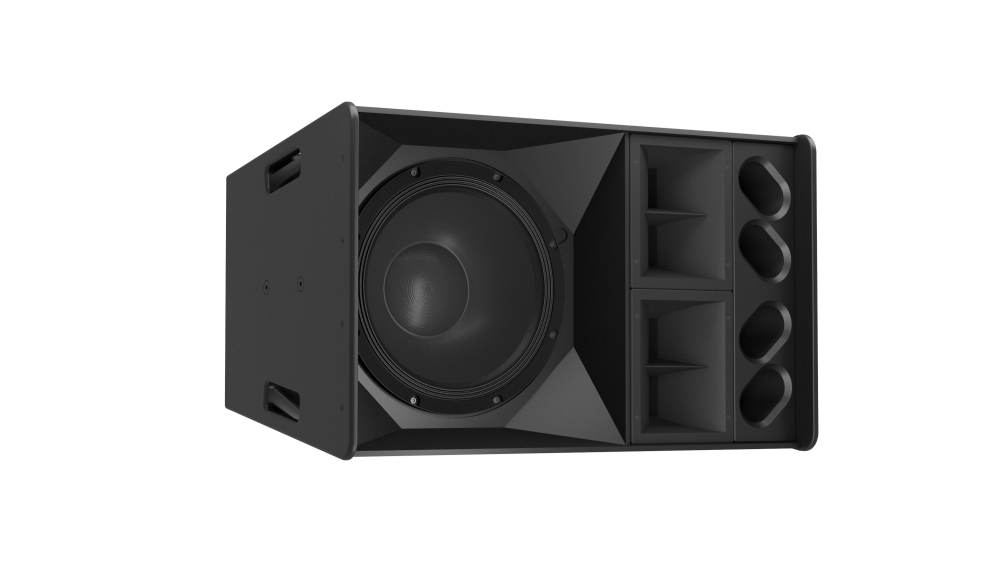

Featuring an efficient 15" NDym cone transducer with 4" voice coil and two 1,4” NDym Hi drivers with 3" voice coil on our proprietary wave formers, the S15N system provides an audio bandwidth of 45Hz - 15KHz with a Peak power handlingof 2000W.

The S15N systems can be operated without the DAL Control & Drive Systems but with a disadvantage of using an external controller device. The passive frequency dividing network has an integrated (RMS) protection limiter for the high frequency drivers on board. When operated with the DAL Control & Drive System,the system is optimal parameterised for sonic quality and protected for maximum continuous and peak sound pressure levels. The DAL Control & Drive Systems provide different settings for the operation of S15N combinations.

The S15N offers a narrow horizontal dispersion in upright position for standalone operation. This allows a tight coupling in dual clusters for long throw high power applications.

Combination recommendation
