▪ double 18” Sub-Low System with High Power cone transducers
▪ cone transducer with long excursion 4” voice coil
▪ optimised vented system without vent-compression at any excursion
▪ stand alone usable, for cardioid arrays with medium to high back absorption
▪ for horizontal lines for uniform coverage or vertical lines for long throw targets
▪ audio Bandwidth 30Hz – 120Hz, Peak SPL >136dB (1m)
▪ includes 8 integrated handles, one M20 Pole adapters, Stacking trays and sliding feet
▪ options: w/o blue wheels, with transport protector, Coating in RAL ColourssTAPELMULDEN
▪ should be operated with DAL DS-4L Control & Drive System

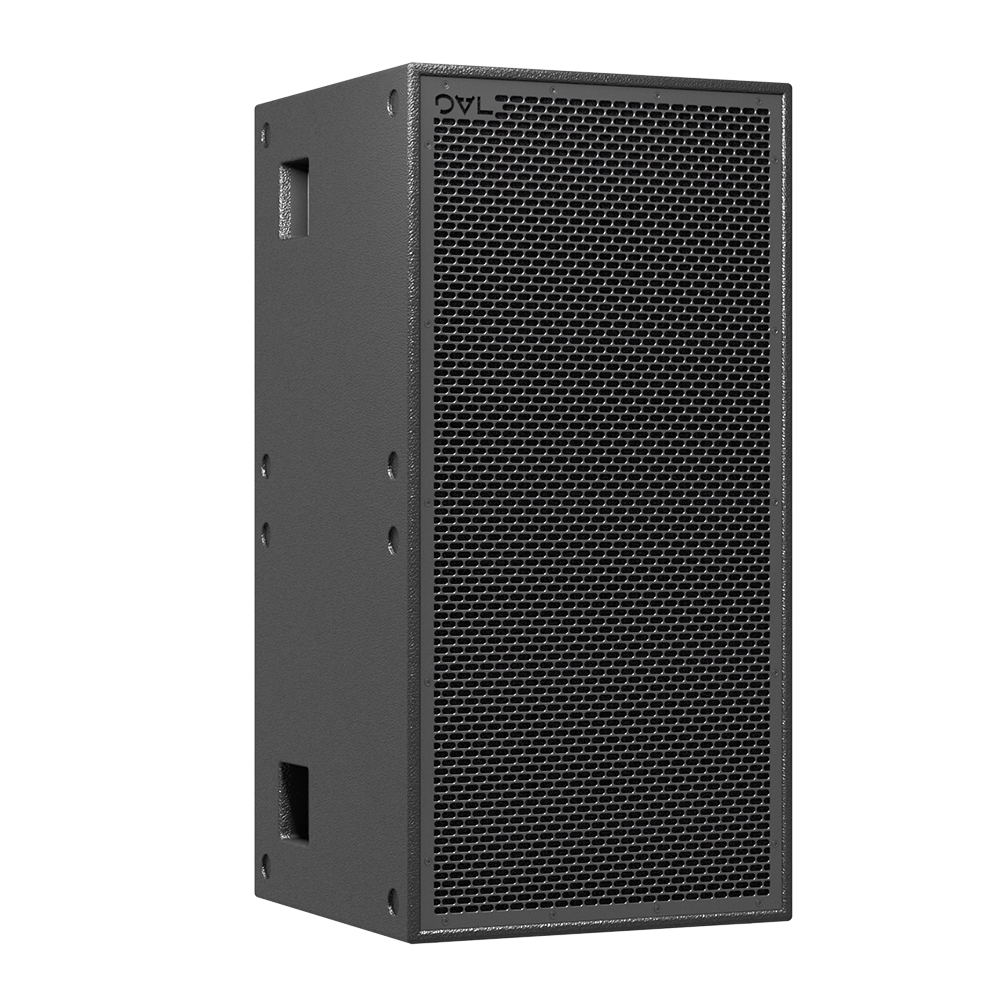

The BR218 systems is an active driven Sub/Low woofer system in a ported cabinet made of waterproof glued plywood with fine textured varnish coating.
The systems is loaded by 2 of 18” long excursion cone transducer with 4” voice coils and a symmetric Low Velocity tuning port. The BR218 provides an (omni-) spherical radiation pattern and works band-limited by an external control system from 38Hz to 100Hz. The system offers a peak power handling of >3000W.

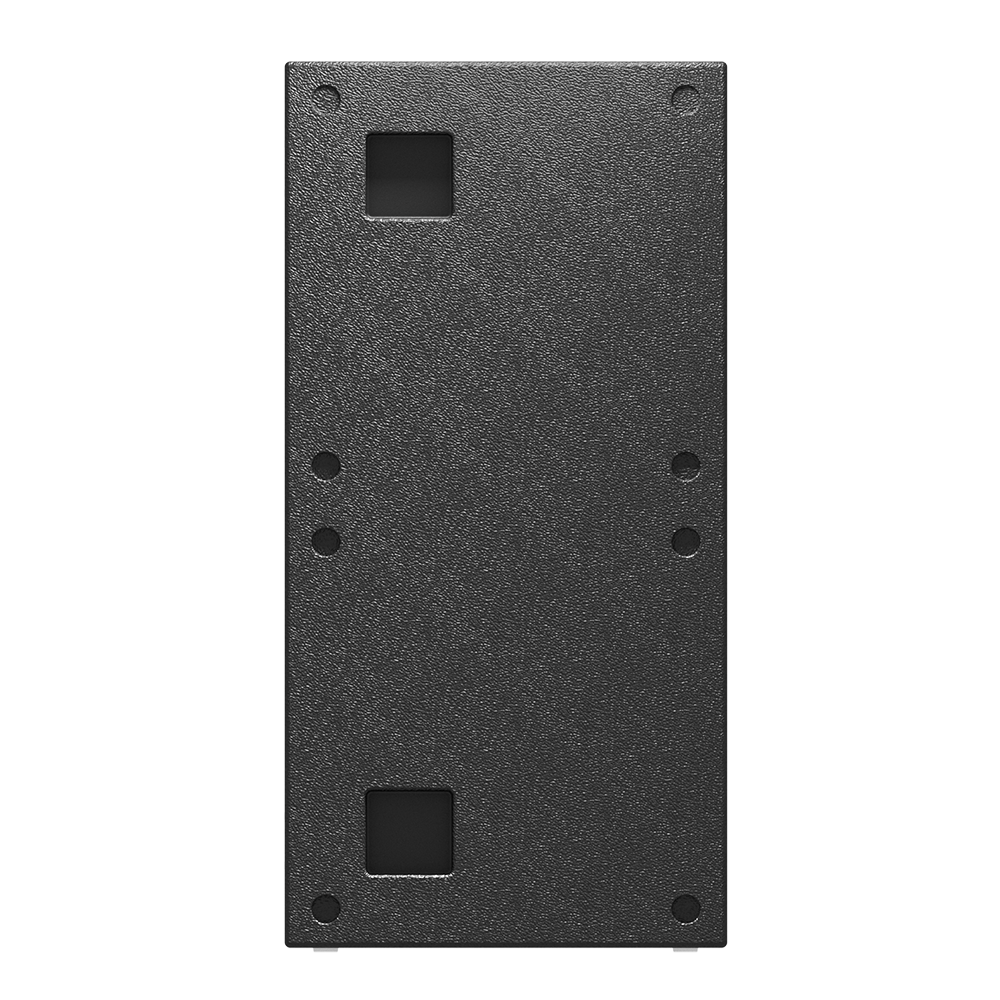

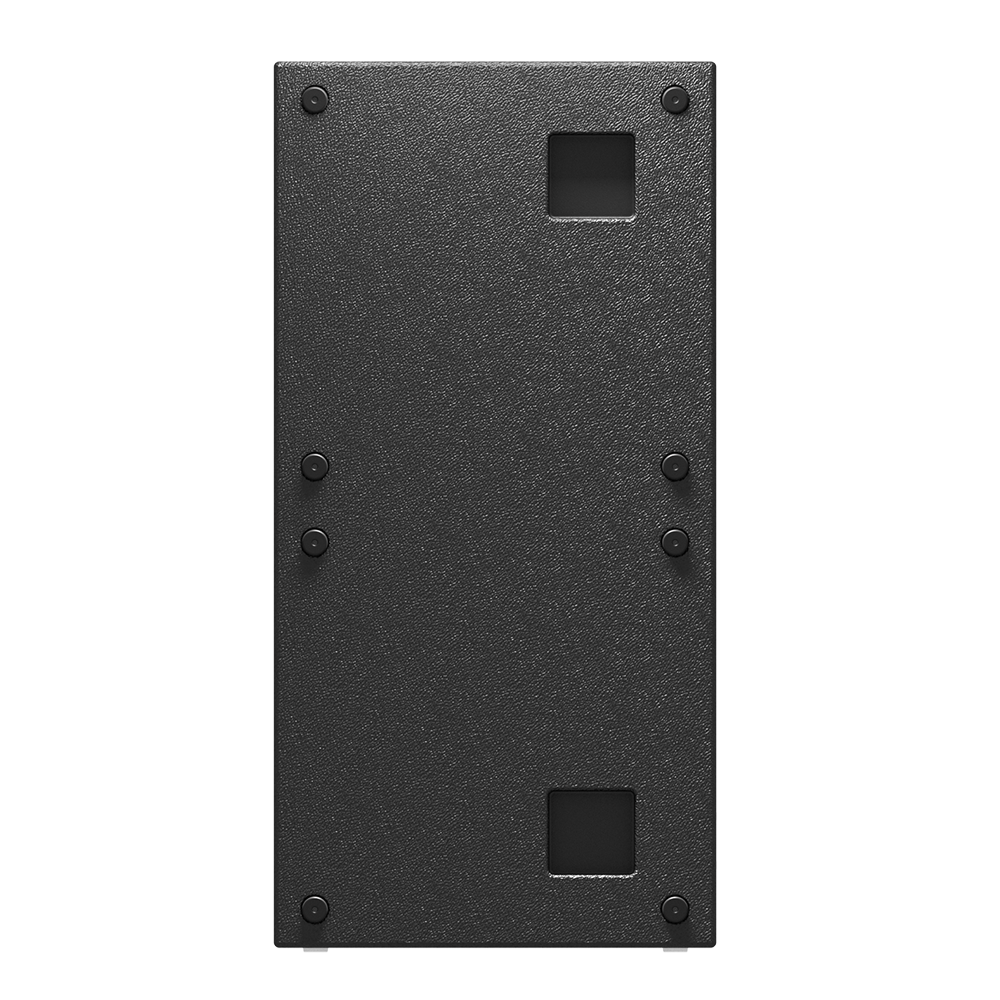

The system has integrated 8 transport handles, 1 M20 threaded plate and is protected by a robust protective grill made from 2mm steel and foam backing.In stand-alone or spaced array operation, it will complete your main systems with sufficient low end. The BR218 can also be used in different complex operation modes like cardioid deployments, “endfired-arrays” or stacked lines.
When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provides different settings for the operation of BR218 combinations.
With a gross volume of <450l the BR218 is one of the smallest high output double 18” sub/low systems with a tuning down to 38Hz.
|
