▪ medium format, high SPL, no minimum listening distance
▪ highly reliable 12-inch cone transducer with 3” Voice Coil
▪ coaxially mounted 1,4-inch Hi-Driver with 3” VC
▪ high efficient and optimised frequency dividing network with HP RMS limiter
▪ audio Bandwidth 60Hz – 18KHz, SPL Peak >135dB/1m
▪ can be operated without DAL Control & Drive System

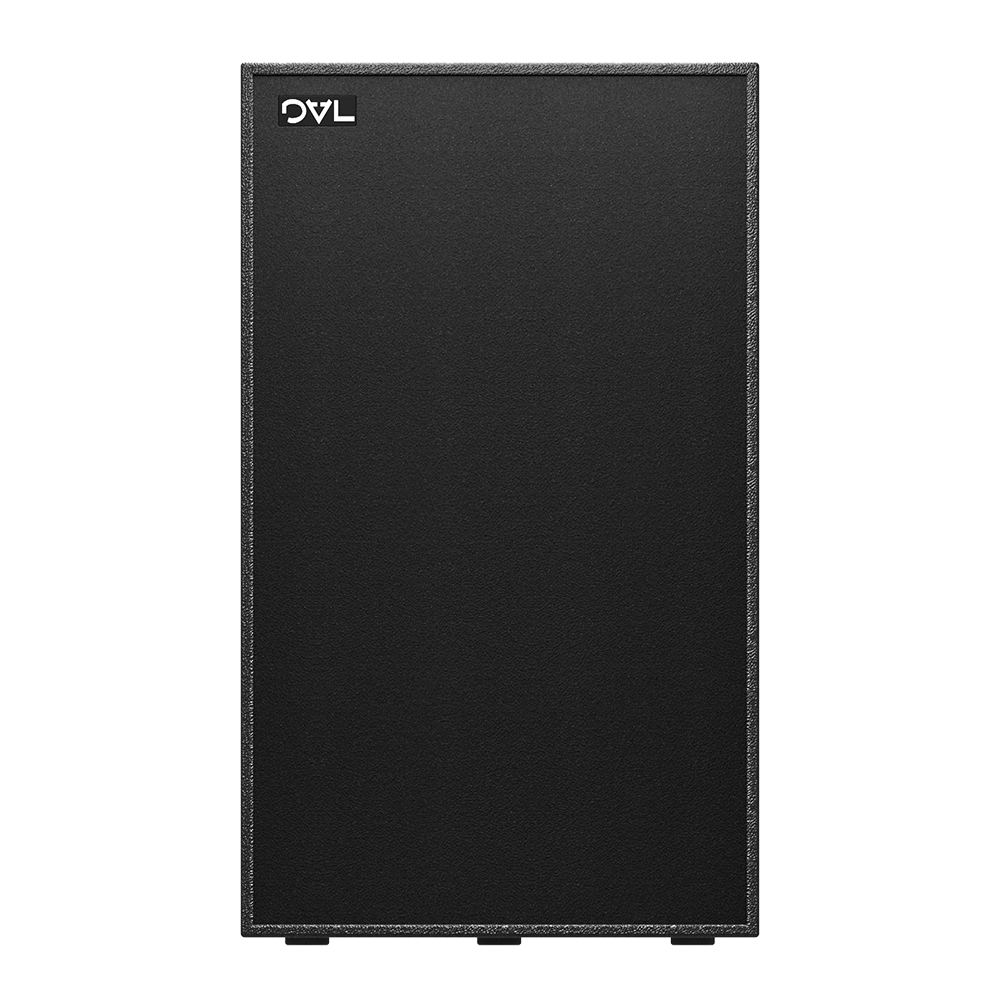

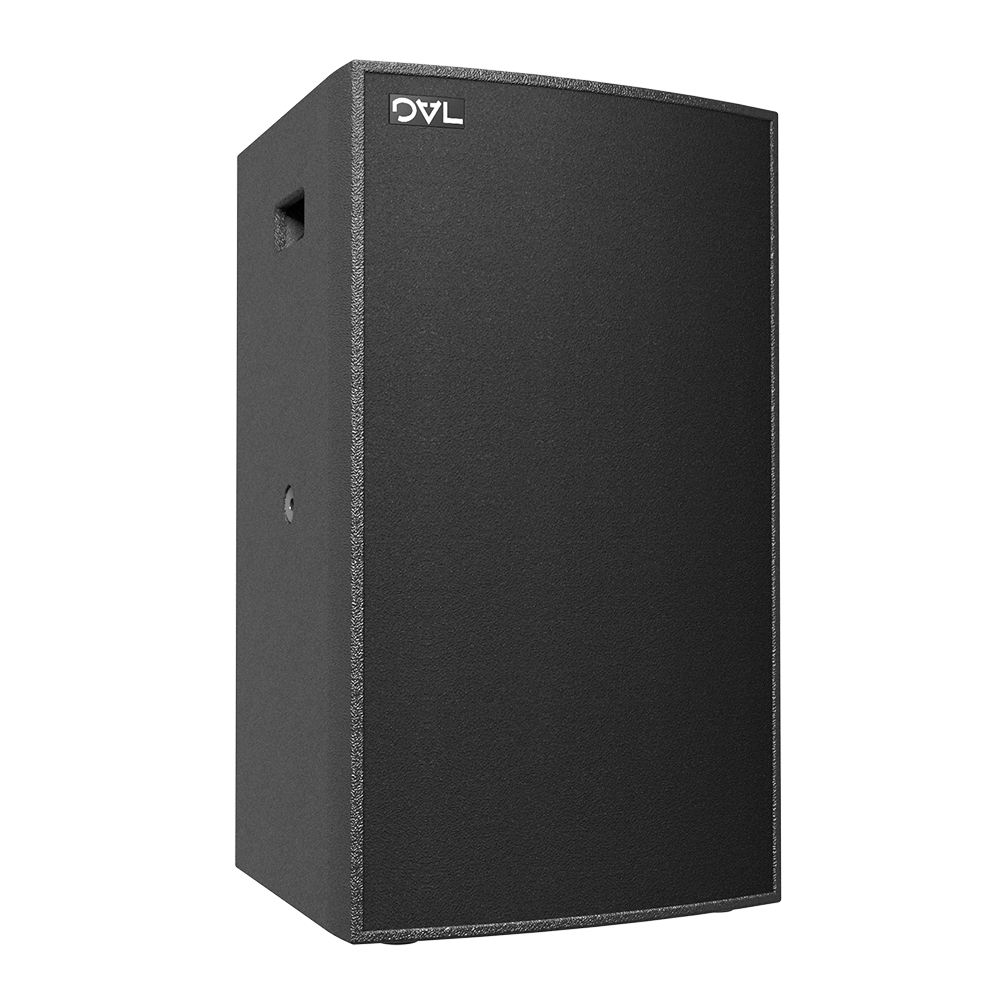

The i12NCX systems is a medium sized coaxial 2-way point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with fine textured paint finish. The systems provides a coverage angels of 80° radial. The system is protected by a robust protective grill with foam overlay. Three integrated handles are provided for an easier handling. The i12NCX system is primarily intended for fixed installation with shorter (critical) listening distance but can be ordered with PU coating for mobile use. In standalone or spaced array operation, it can be used as a main, support or effect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission.
For low end support, the DAL Sub-Low systems, BR115, BR215 and BR118 BR218 are suitable.Featuring an 1,4” Hi driver with 3” (75mm) Voice coils coaxial loaded by an efficient 12"cone driver with 3" (76mm) voice coil the i12NCX system provides an audio bandwidth of 60Hz - 18KHz with a Peak power handling of 700W.The i12NCX systems can be operated without the DAL Control & Drive Systems. The passive frequency dividing system features an integrated (RMS) protection limiter for the high frequency driver. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provides different settings for the operation of i12NCX combinations. The i12NCX offers a dispersion pattern for stand-alone operation.
|
