▪ medium format, high SPL, no minimum listening distance
▪ highly reliable 10-inch cone transducer with 2,5” Voice Coil
▪ coaxially mounted 1,3-inch N-Dym Hi-Driver with 2,5” Voice Coil
▪ high efficient and optimised frequency dividing network with HP RMS limiter
▪ audio Bandwidth 65Hz – 20KHz, SPL Peak >126dB/1m
▪ can be operated without DAL Control & Drive System

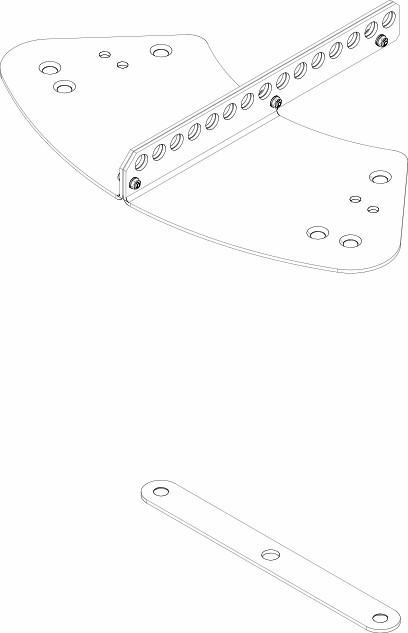

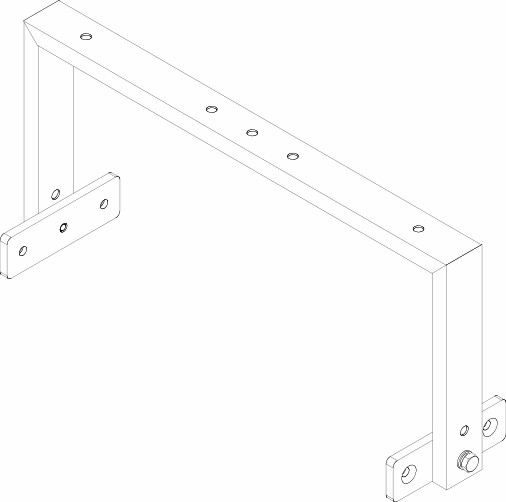

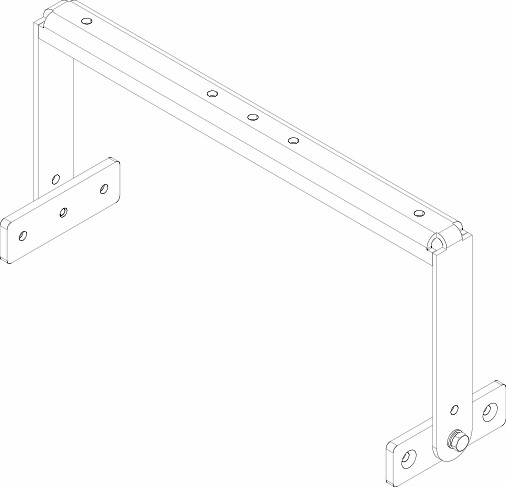

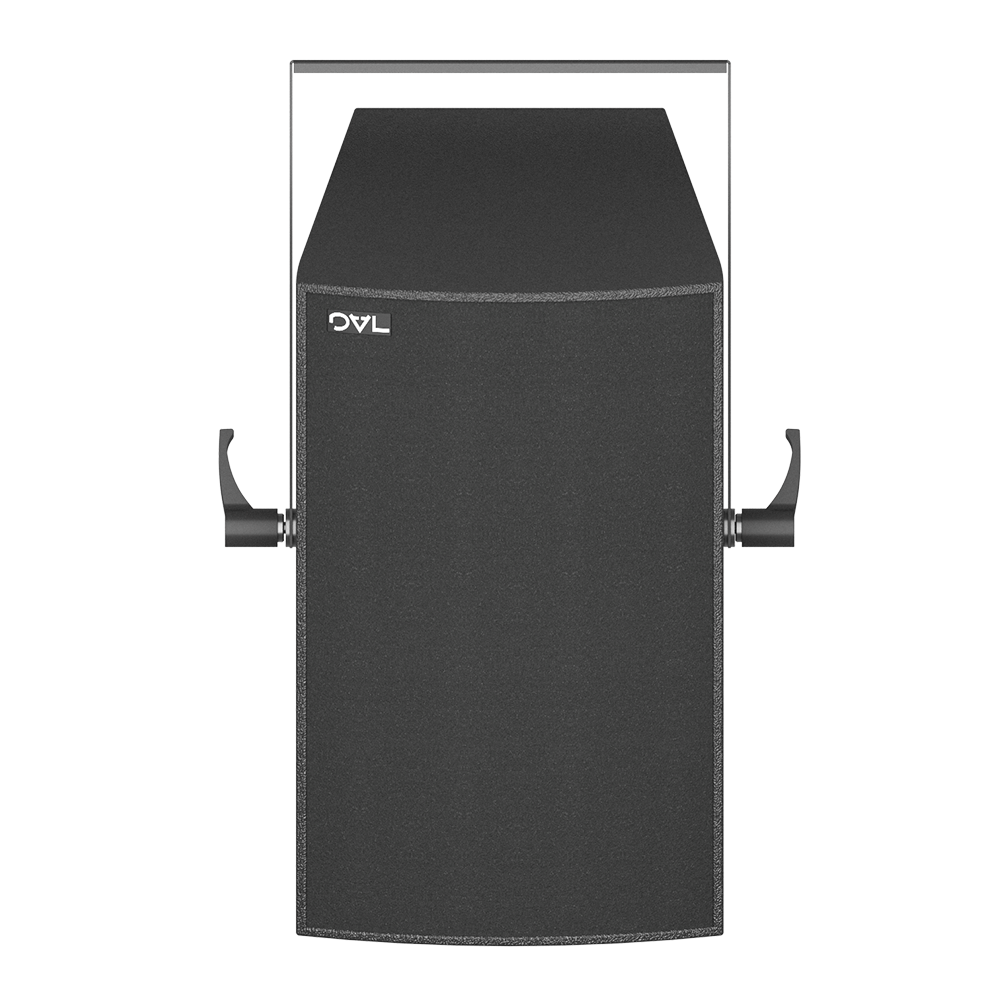

▪ multiple fixing and versatile mounting options, optional RAL colours, optional PU-coating for mobile use
▪ The DAL DS-4M Control & Drive system ensures best linearity and safe operation at high sound pressure level together with system control for different applications

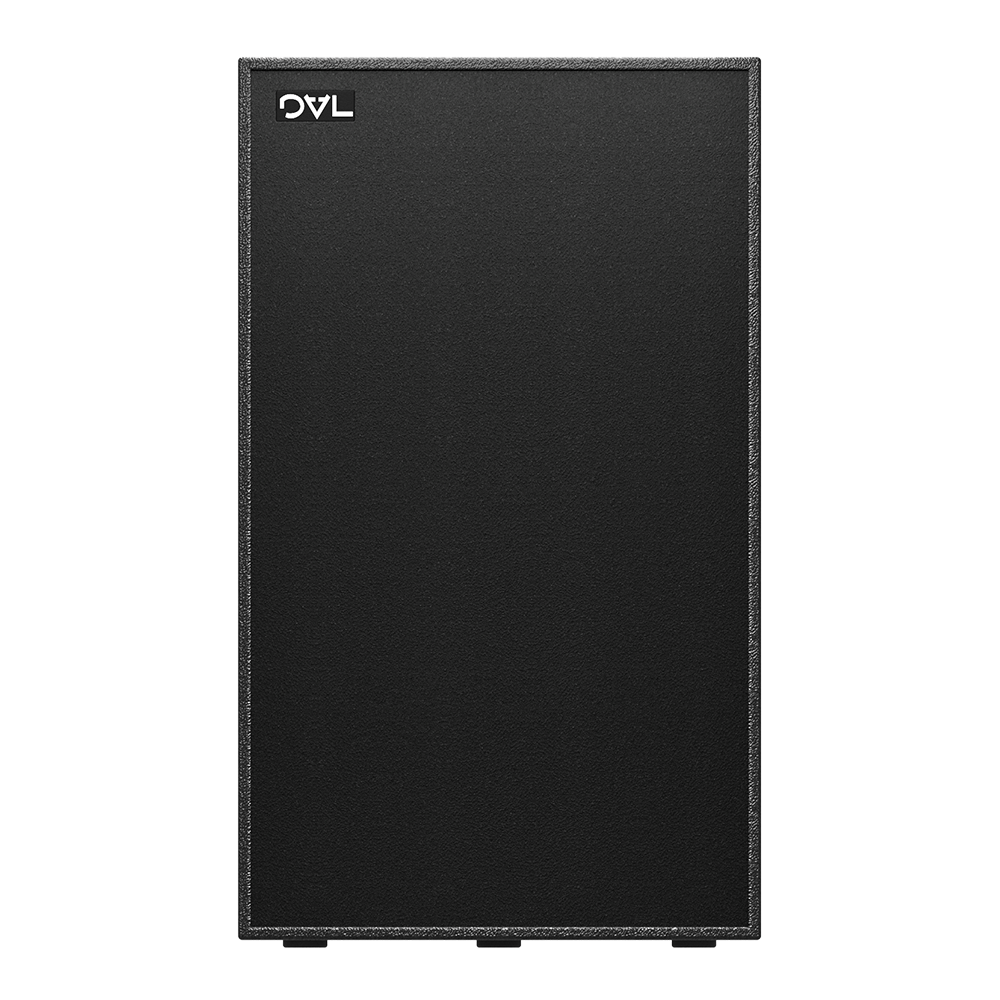

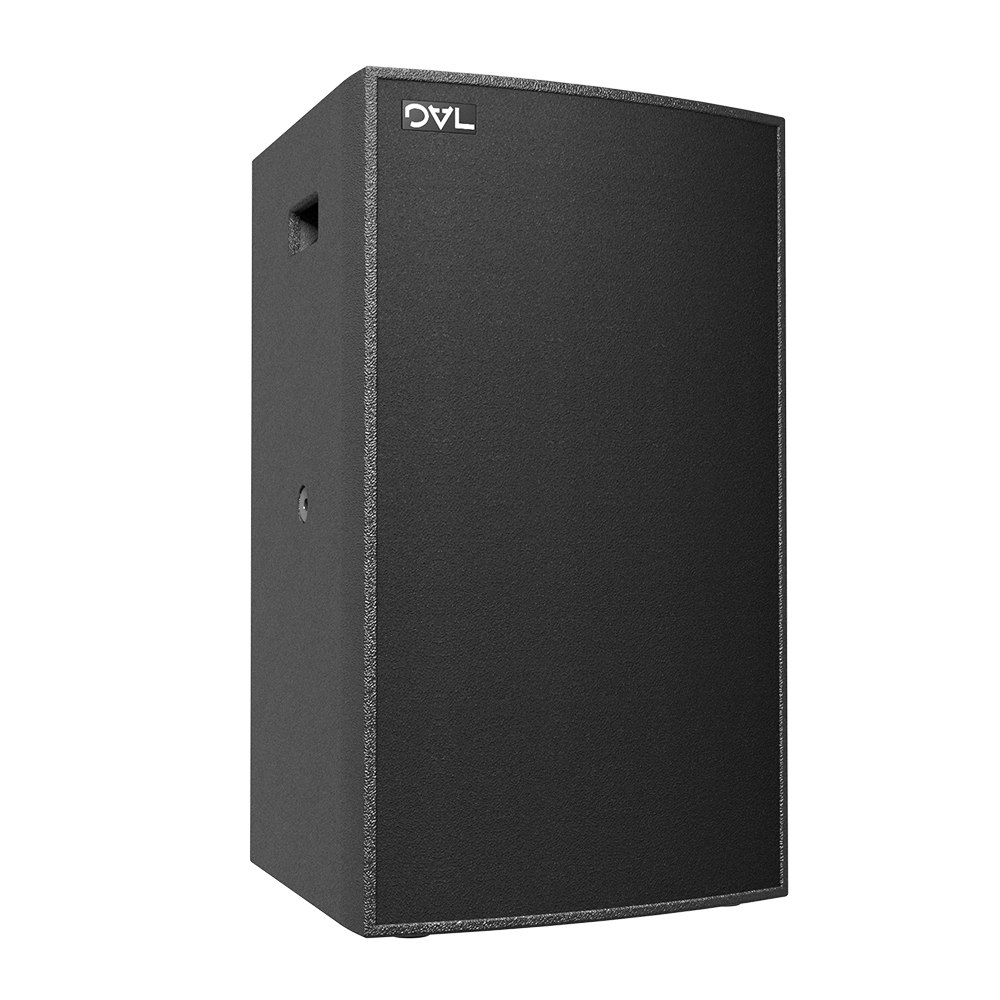

The i10NCX systems is a compact coaxial 2-way point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with fine textured paint finish. The systems provides a coverage of 80° radial. The system is protected by a robust protective grill with foam overlay.

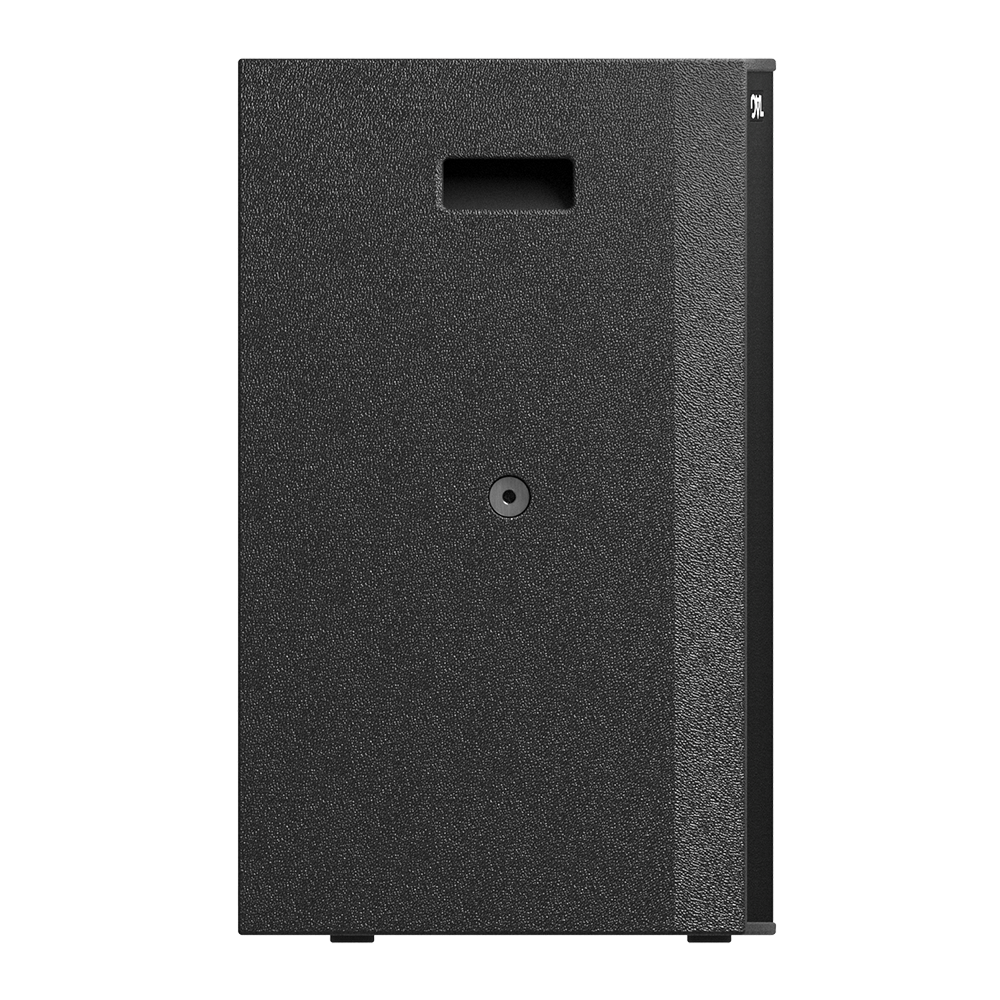

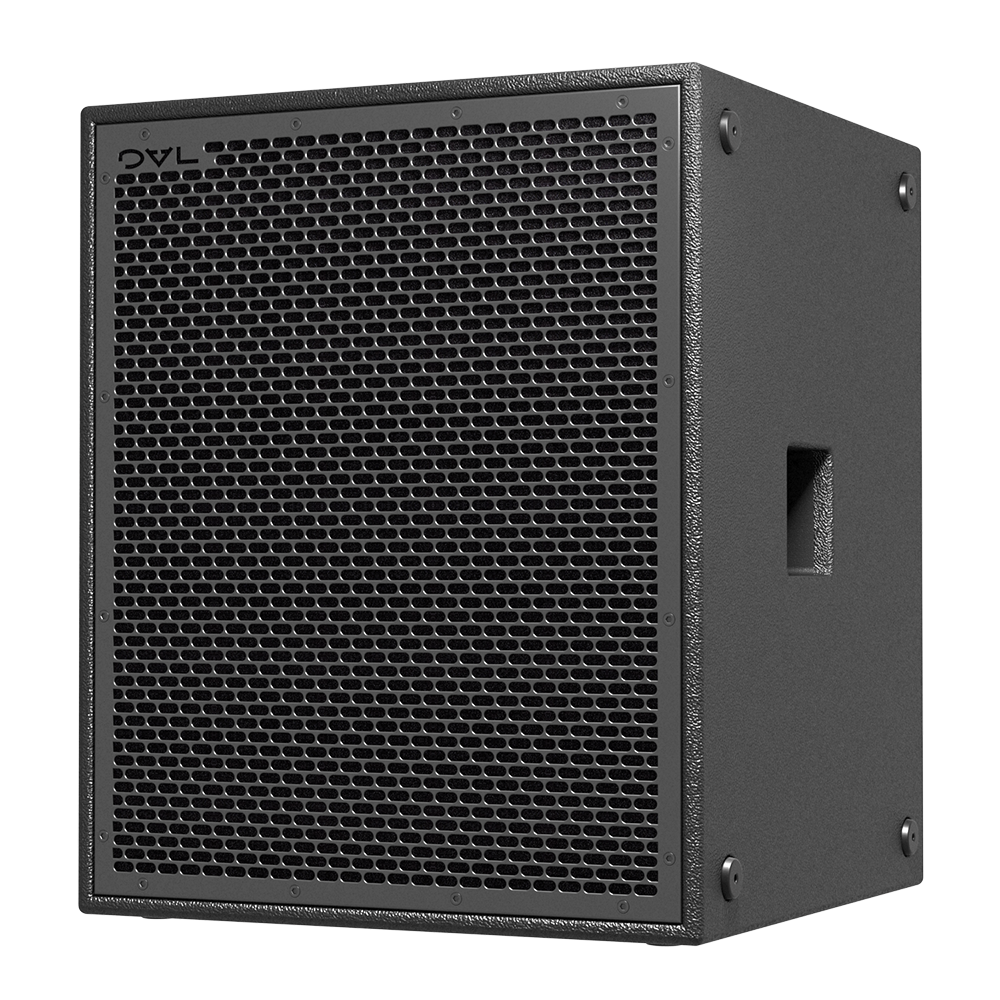

Twointegrated handles are provided for an easier handling. The i10NCX system is primarily intended for fixed installation with shorter (critical) listening distance but can be ordered with PU coating for mobile use. In stand-alone or spaced array operation, it can be used as a main, support or effect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission. For low end support, the DAL Sub-Low systems, BR12N, BR15N, BR115 and BR118 are suitable.
Featuring an 1,3” Hi driver with 2,5” (65mm) Voice coils coaxial loaded by an efficient 10"cone driver with 2.5" (65mm) voice coil the i10NCX system provides an audio bandwidth of 60Hz - 18KHz with a Peak power handling of 500W.The i10NCX systems can be operated without the DAL Control & Drive Systems. It's passive frequency deviding network features an integrated (RMS) protection limiter for the high frequency driver. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provides different settings for the operation of i10NCX combinations.
The i10NCX offers a dispersion pattern for stand-alone operation.
|
