▪ medium Format, high SPL, variable dispersion
▪ highly reliable cone transducer with 2,5” Voice Coil
▪ 1-inch N-Dym with 1,75” Voice Coil on rotateable horn
▪ (hxv) 90°x60° versions available
▪ high efficient and optimised frequency dividing network with HP RMS limiter
▪ audio Bandwidth 65Hz – 20KHz, SPL Peak >127dB/1m
▪ can be operated without DAL Control & Drive System

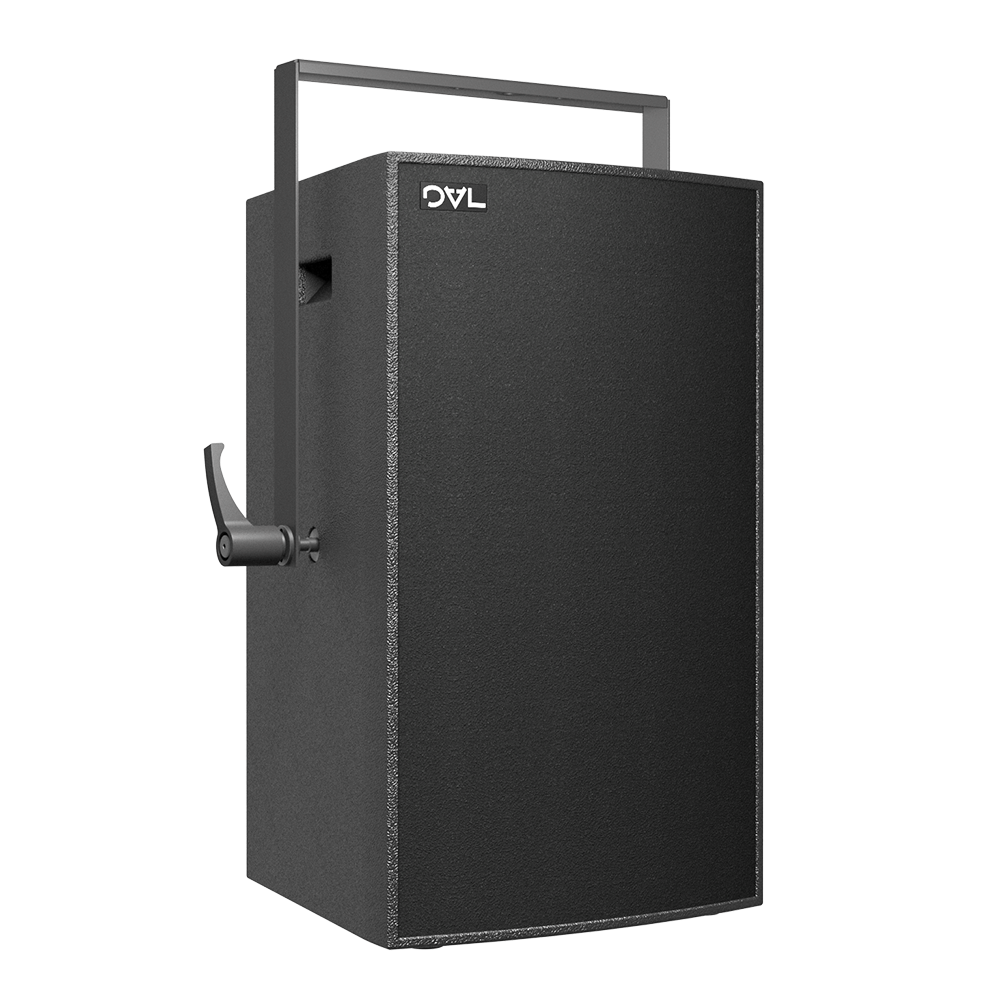

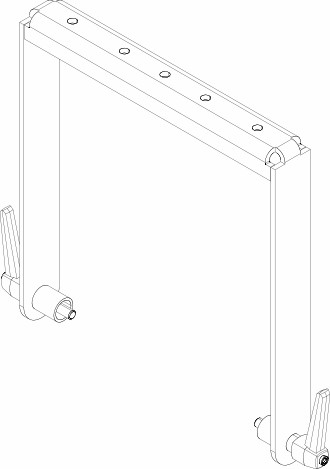

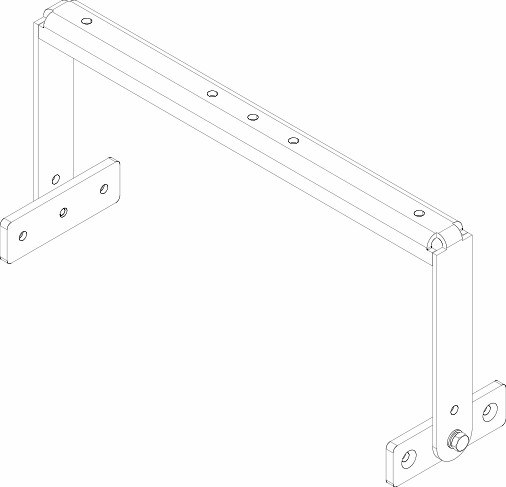

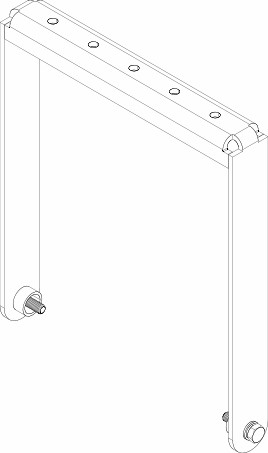

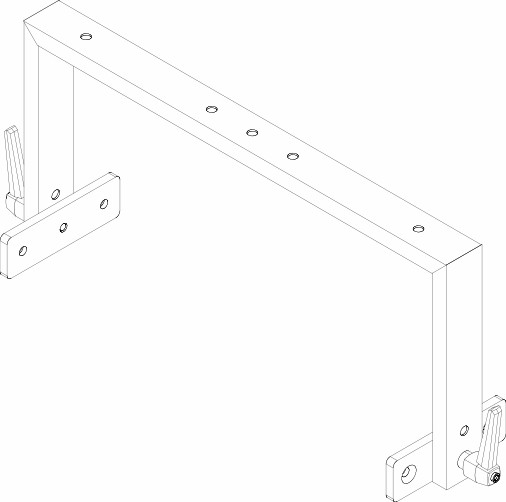

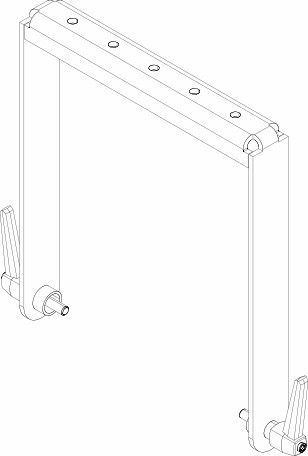

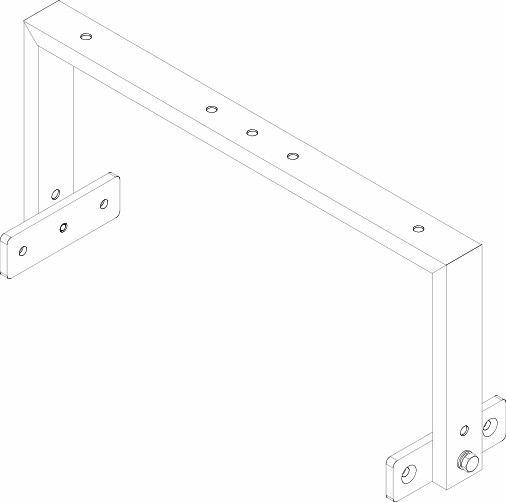

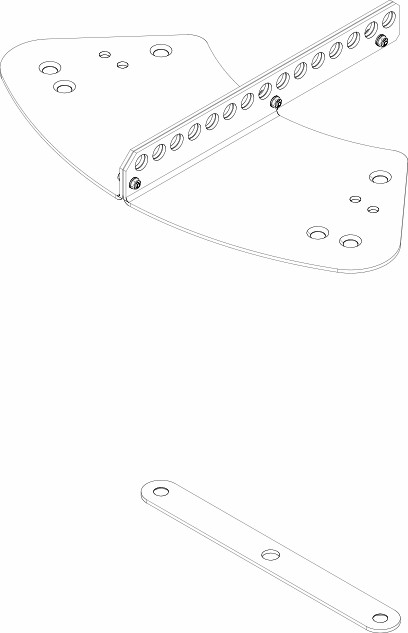

▪ multiple fixing and versatile mounting options, optional RAL colours, optional PU-coating for mobile use
▪ The DAL DS-4M Control & Drive system ensures best linearity and safe operation at high sound pressure level together with system control for different applications

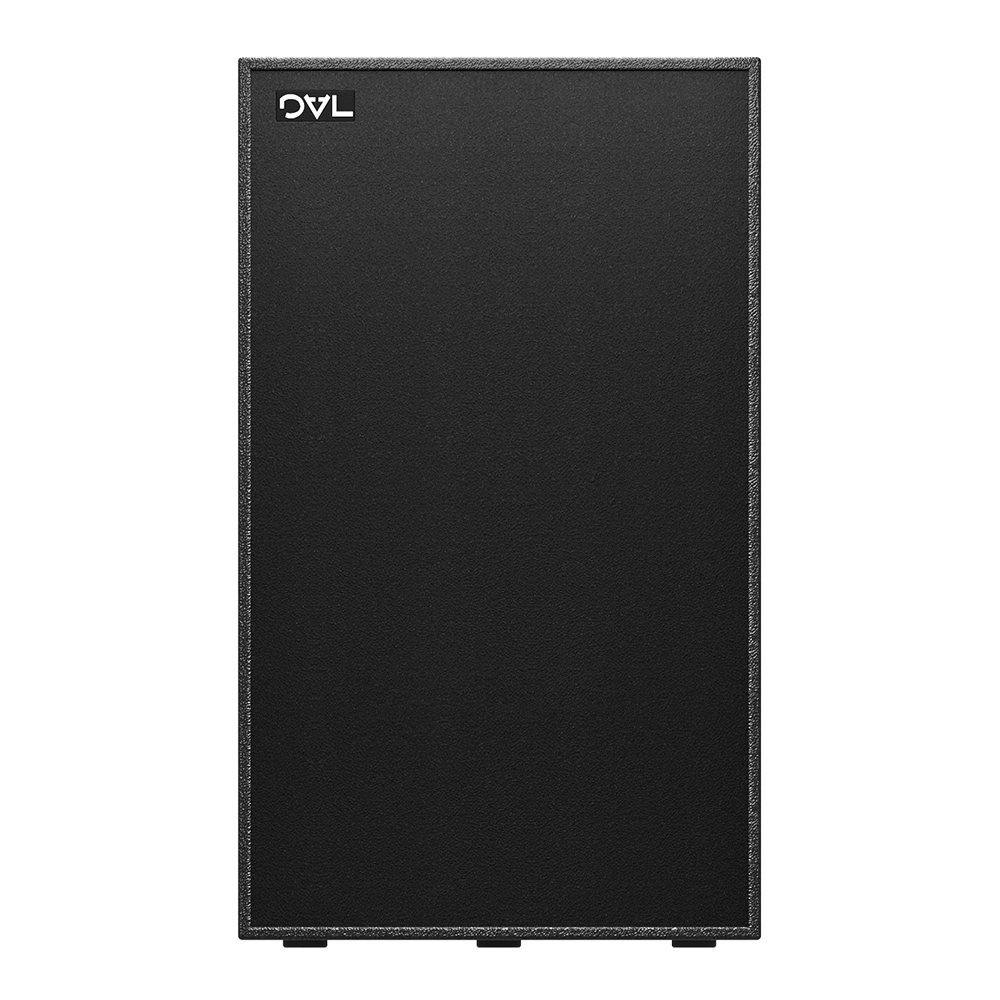

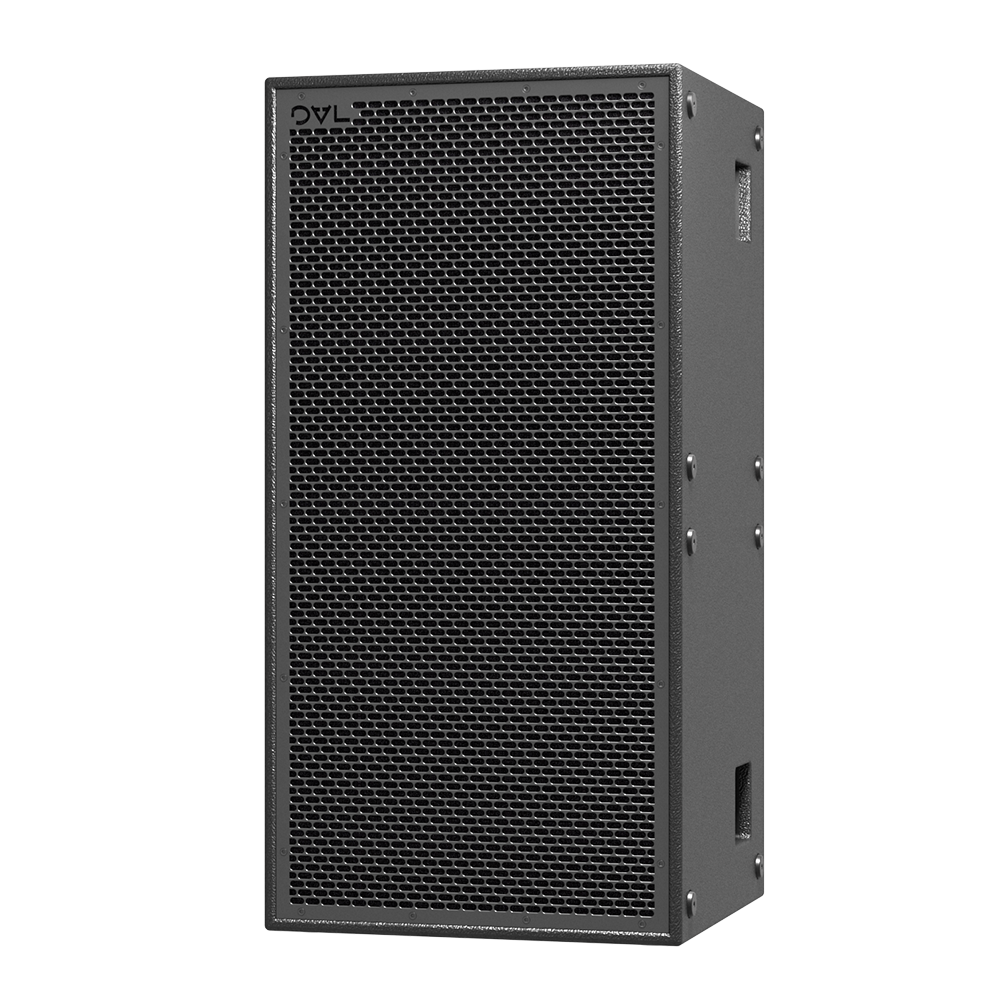

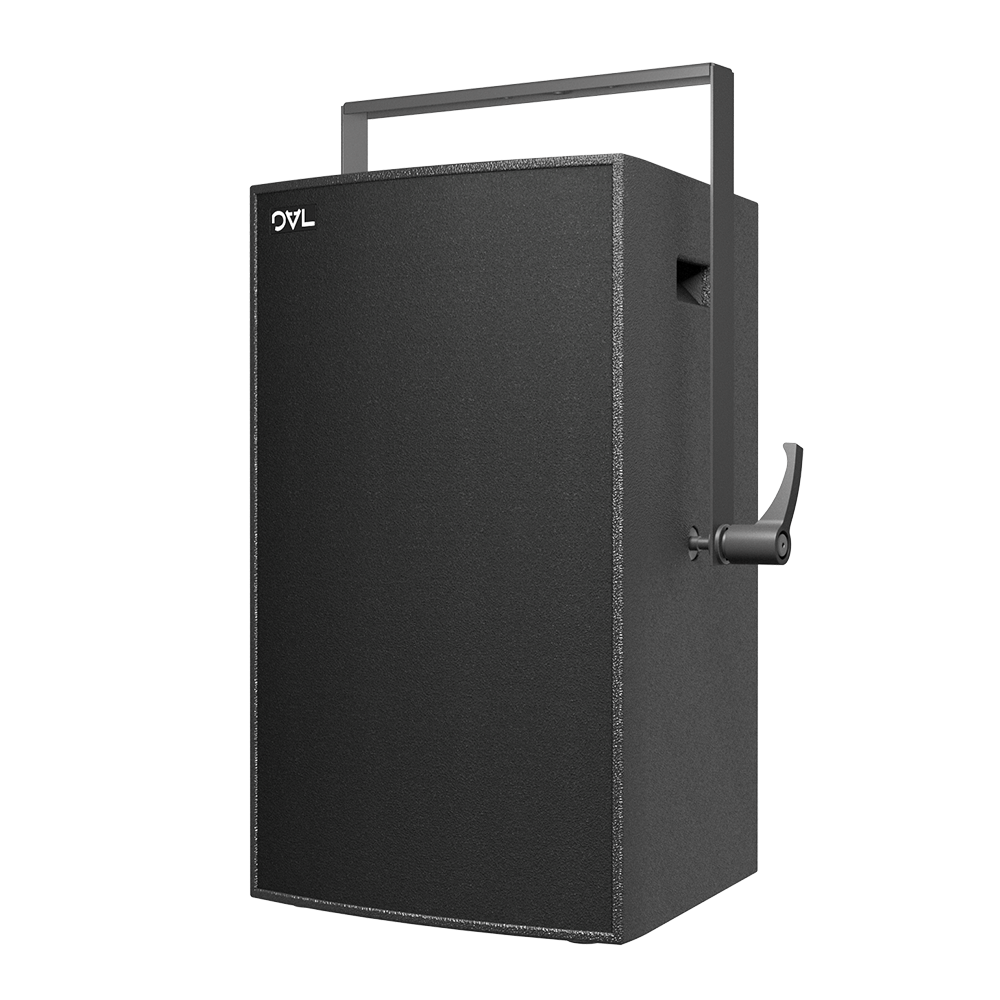

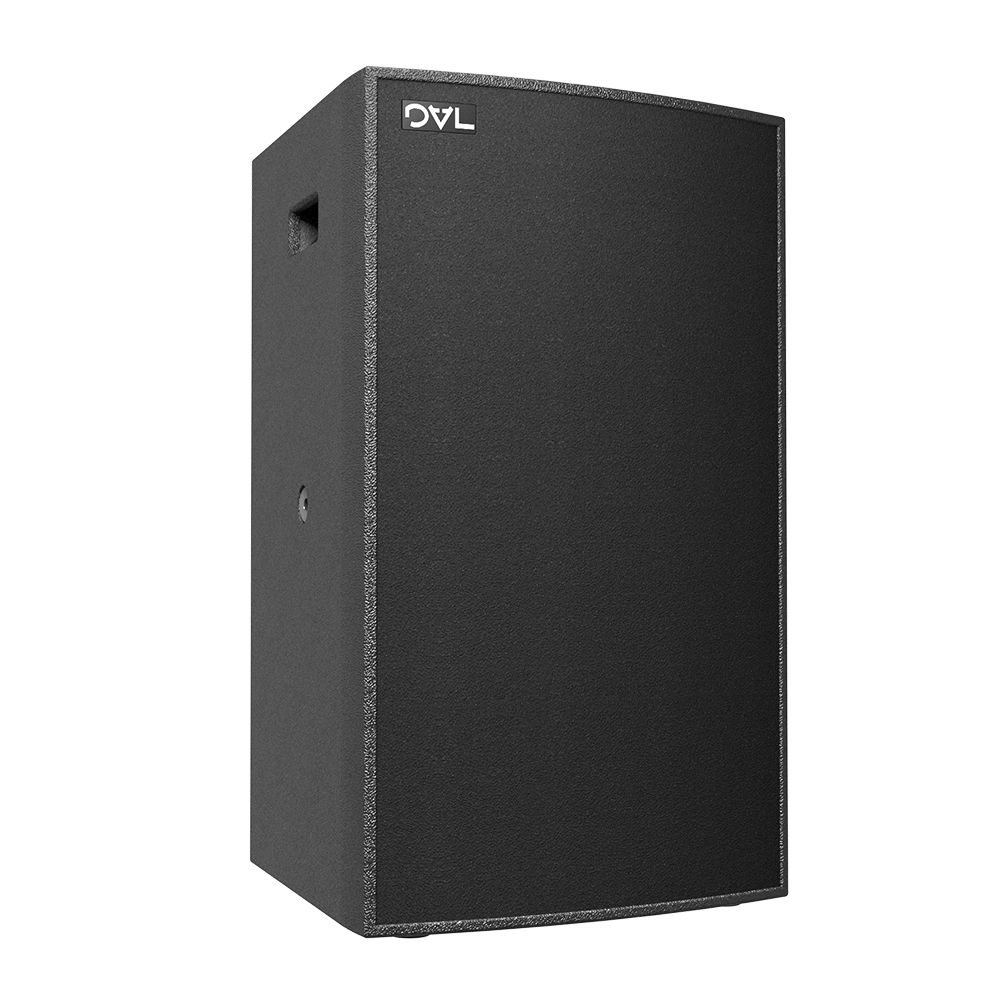

The i10N-90 and the i10N-60 systems are compact 2-way constant coverage point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with fine textured paint finish. The Variants providing different horizontal and vertical coverage angels of 90°x 60° (h x v i10N-90) and 60°x40° (h x v i10N60). Please note that their horns are not interchangeable due to different passive frequency dividing networks. The system is protected by a robust protective grille with foam overlay. Two integrated handles are provided for an easier handling.
The i10N system is primarily intended for fixed installation, but can be ordered with PU coating for mobile use. In stand-alone or spaced array operation, it can be used as a main, support or effect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission.
For low end support, the DAL Sub-Low systems, BR12N, BR15N, BR115 and BR118 are suitable.
Featuring an efficient 10" NDym cone driver with 2.5"voice coil and an NDym 1" driver with 1.75"voice coil on a rotatable horn, the i10N system provides an audio bandwidth of 60Hz - 20KHz with a Peak power handling of 600W.The i10N systems can be operated without the DAL Control & Drive Systems.
It has an integrated (RMS) protection limiter for the high frequency driver. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provide different settings for the operation of i10N combinations. The i10N-90 offers a wide horizontal dispersion for stand-alone operation.The i10NN-60 is also suitable for tight clustering and arraying with the horn rotated to narrow horizontal dispersion (h x v 2 x 40° x 60°).
|
