▪ Small format, high SPL
▪ High Power 6,5-inch Ndym cone transducer with 1,5” Voice Coil
▪ 1-inch N-Dym Hi-Driver w. 1,75”Voice Coil on rotatable Constant-Q horn
▪ High efficient and optimised frequency dividing network
▪ Audio Bandwidth 70Hz – 20KHz, SPL Peak >122dB/1m
▪ Can be operated without DAL Control & Drive System
▪ 16Ohm – non critical impedance response
▪ allows multiple i6N on one amp channel

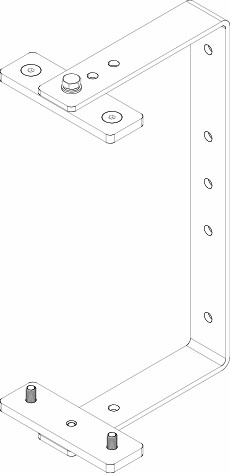

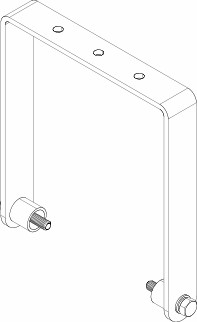

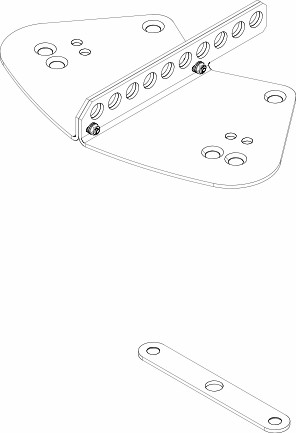

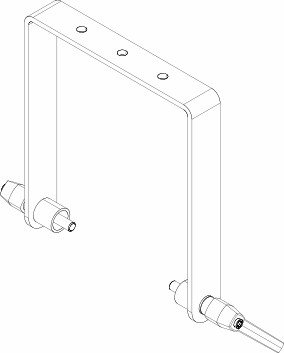

▪ multiple fixing and versatile mounting options, optional RAL colours, optional ▪ PU-coating for mobile use
▪ The DAL DS-4S Control & Drive system ensures best linearity and safe operation at high sound pressure level together with system control for different applications

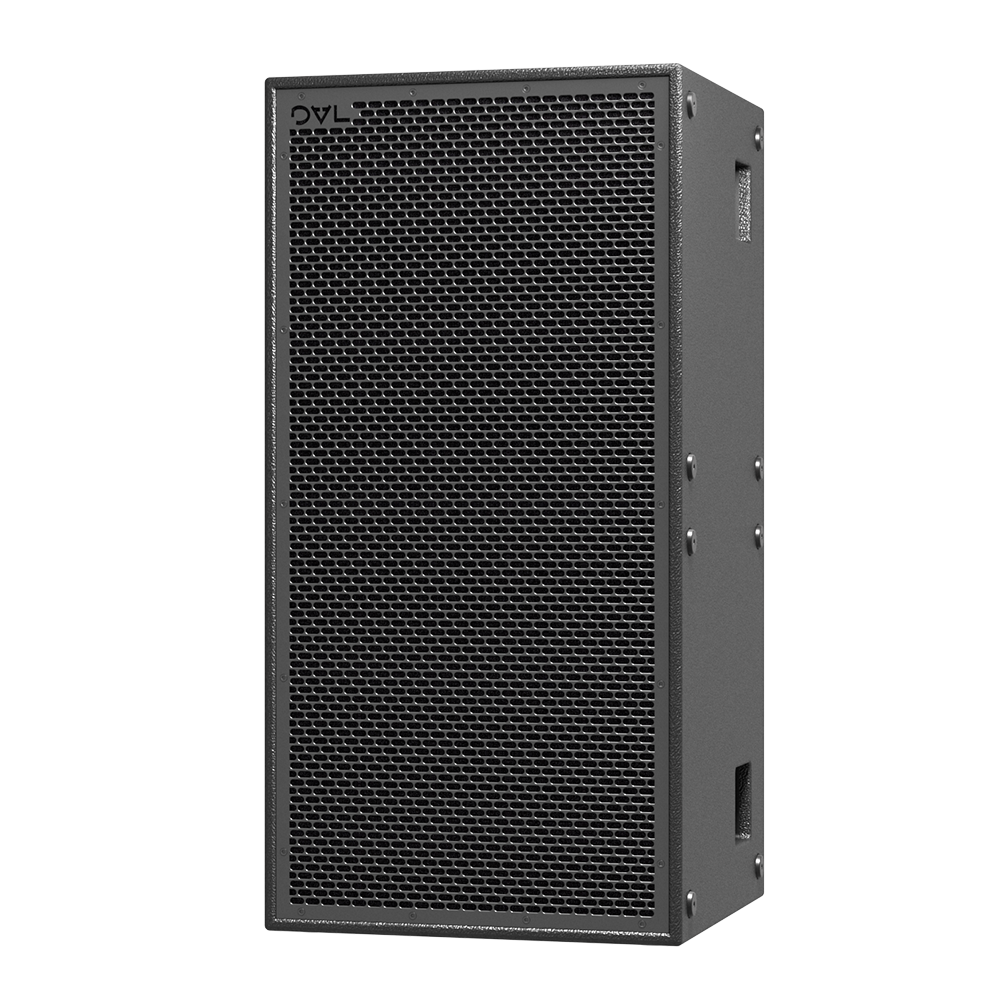

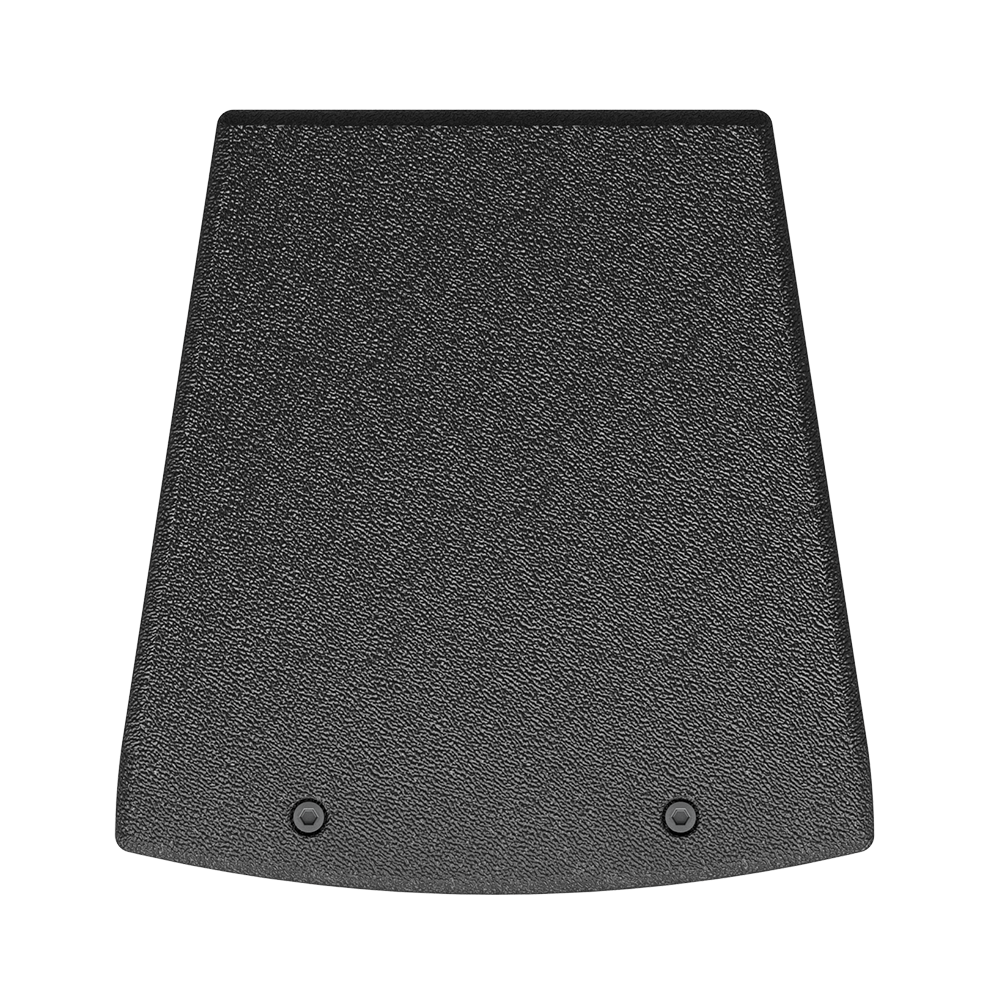

The i6N systems is a compact 2-way constant coverage point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with fine textured paint finish. The i6N provides a coverage of (h x v) 110°x 60°. The system is protected by a robust protective grille with foam cover. The i6N system is primarily intended for fixed installation, but can be ordered with PU coating for mobile use. In stand-alone or spaced array operation, it can be used as a main, support or e?ect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission. For low end support, the DAL Sub-Low systems, BR12N is suitable.
Featuring a high e?icient 6,5" NDym cone driver with 1.5"voice coil and an NDym 1" driver with 1.75"voice coil on a rotatable horn, the i6N system provides an audio bandwidth of 80Hz - 20KHz with a Peak power handling of 300W.
The i6N system can be operated without the DAL Control & Drive Systems. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provide di?erent settings for the operation of i6N combinations.
The i6N o?ers a wide horizontal dispersion for stand-alone operation.
The i6NN is also suitable for tight clustering and arraying with the horn rotated to narrow horizontal dispersion (h x v 2 x 50° x 90°).
|
