▪ square format, no minimum listening distance
▪ highly reliable 6,5-inch N-Dym cone Transducer 1,75 inch Voice Coil
▪ coaxial mounted 1-inch N-Dym Hi-Driver 1,5” Voice Coil
▪ high efficient and optimised frequency dividing network
▪ audio Bandwidth 80Hz – 18KHz, SPL Peak >119dB/1m
▪ can be operated without DAL Control & Drive System
▪ 16Ohm – non critical impedance response
▪ allows multiple i6NCX on one amp channel

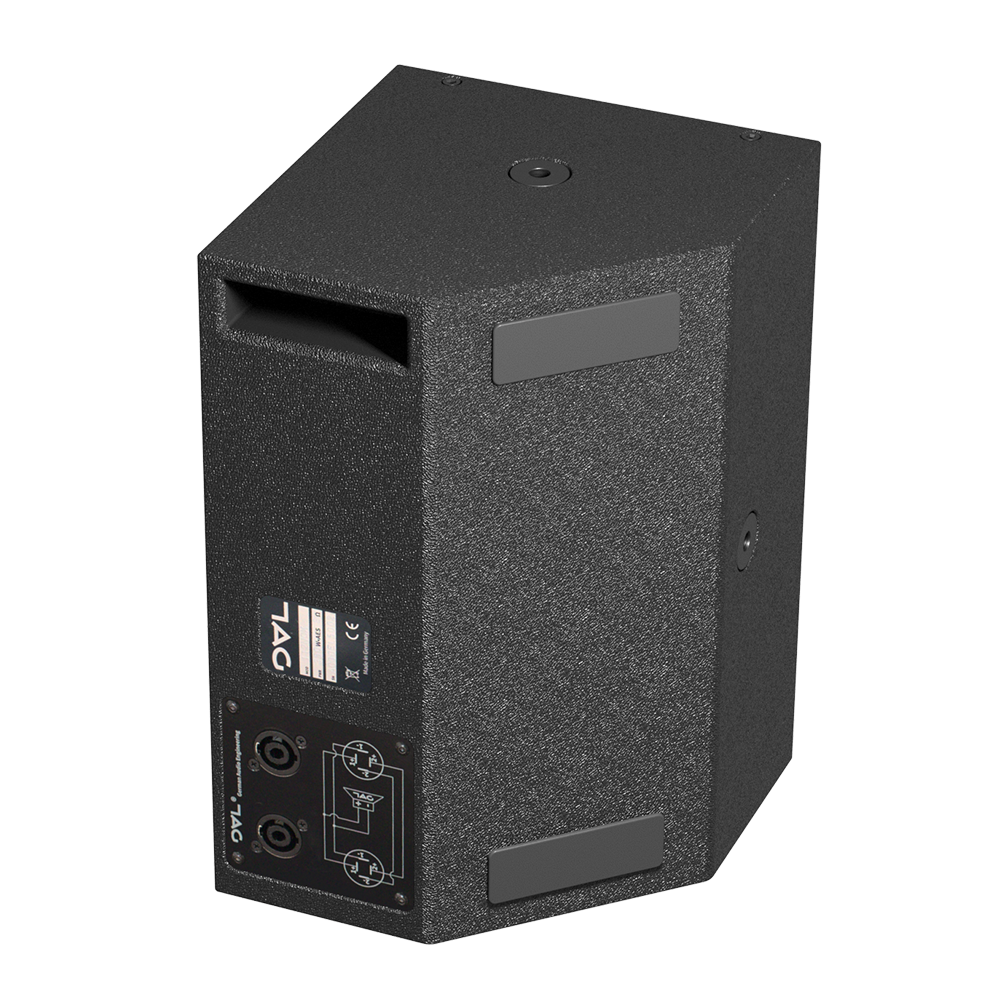

▪ grip hole on the back and rubber skids on bottom
The S6NCX systems is a compact 2-way coaxial point sources with passive frequency dividing network in a ported cabinet made of waterproof glued plywood with textured PU coating. The S6NCX provides a radial coverage of typically 100°. The coaxial design does not require a minimum listen distance. The system is protected by a robust protective grill with foam inlay. One integrated grip hole is provided for an easier handling. The S6NCX system is primarily intended for mobile use. In stand-alone or spaced array operation, it can be used as a near field support, delay line or e?ect speaker. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission and is also suitable as a FOH monitor system. For low end support, the DAL Sub-Low system BR12N is suitable. Featuring a high e?icient 6,5" NDym cone driver with 1.75"voice coil coaxially loading a NDym 1" driver with 1.5"voice coil the S6NCX system provides an audio bandwidth of 80Hz - 19KHz with a Peak power handling of 300W.
The S6NCX systems can be operated without the DAL Control & Drive Systems. When operated with the DAL Control & Drive System, the system is optimal parameterized for sonic quality and protected for maximum continuous and peak sound pressure level. The DAL Control & Drive Systems provide di?erent settings for the operation of S6NCX combinations. The S6NCX o?ers a wide horizontal dispersion for stand-alone operation.
|
