Point Source – Install

▪ Acoustical Bandwidth (S4N FR-Mode) with DAL DS-4S / DS-4M: 130Hz – 16KHz

▪ Dispersion S4N (h x v): typically 120° radial 500Hz - 5000Hz

▪ Dispersion i4N (h x v): typically 120° radial 500Hz - 5000Hz

▪ Electrical Phase Response: +/- 45°: 150Hz – 16KHz

▪ Nominal Impedance (Re): 16Ohm

▪ System Power: 50W (AES), 100W Peak

▪ Continous SPL: >110dB/1m

▪ Peak SPL: > 110dB/1m, Music Signal1

▪ Dimensions (H x W x D mm): 120 x 120 x 120,5

▪ Net Weight: 2,1kg

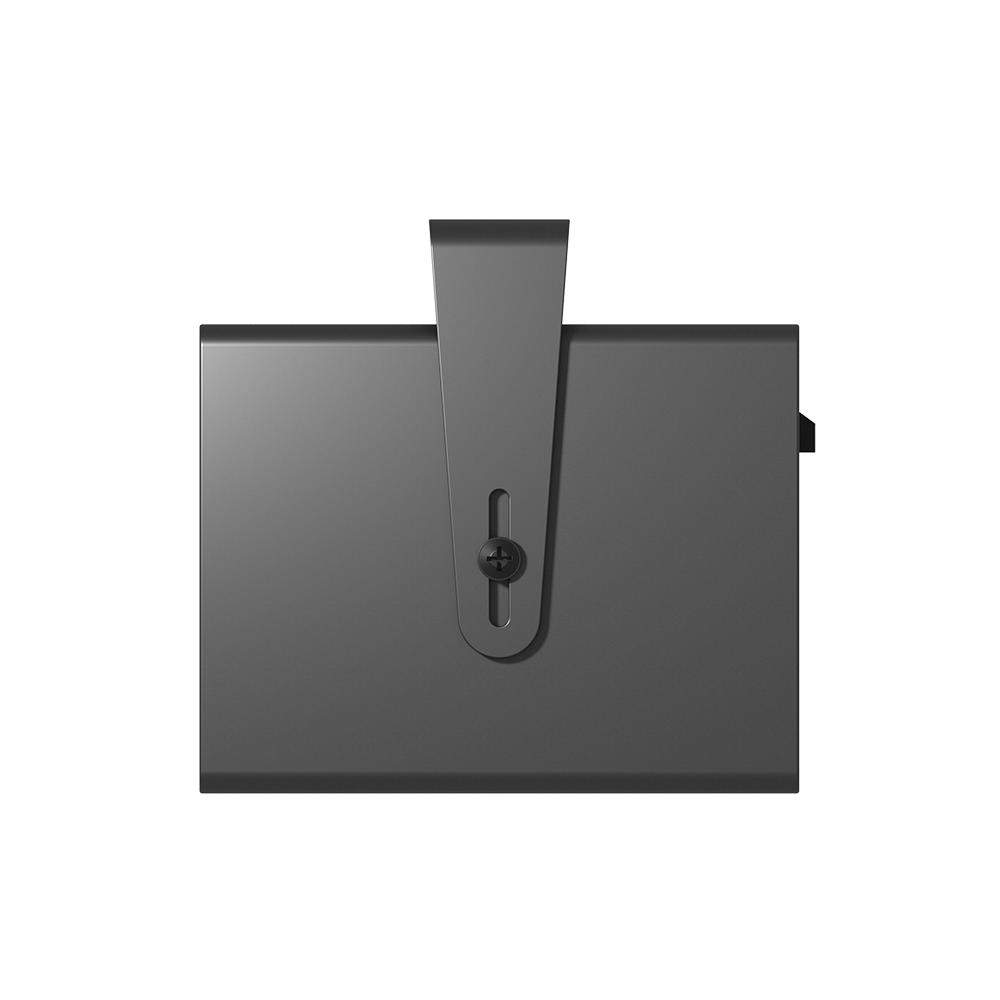

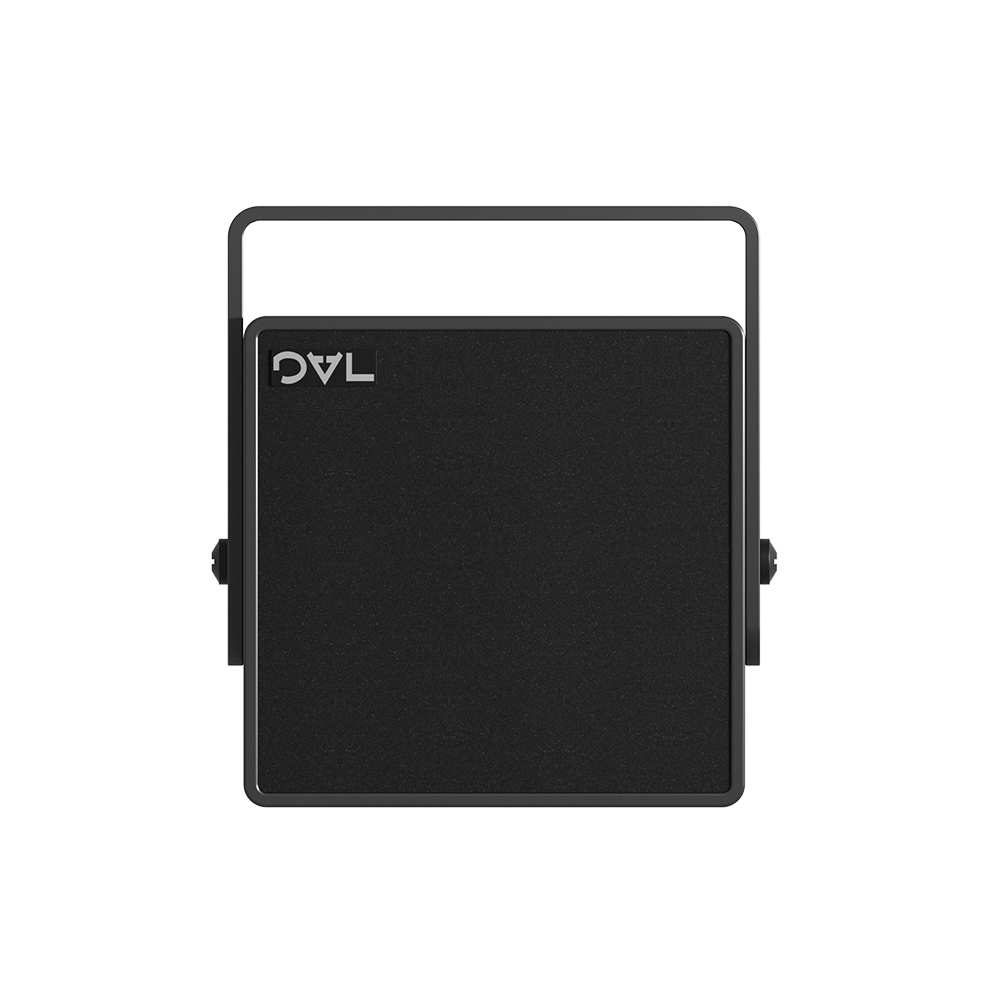

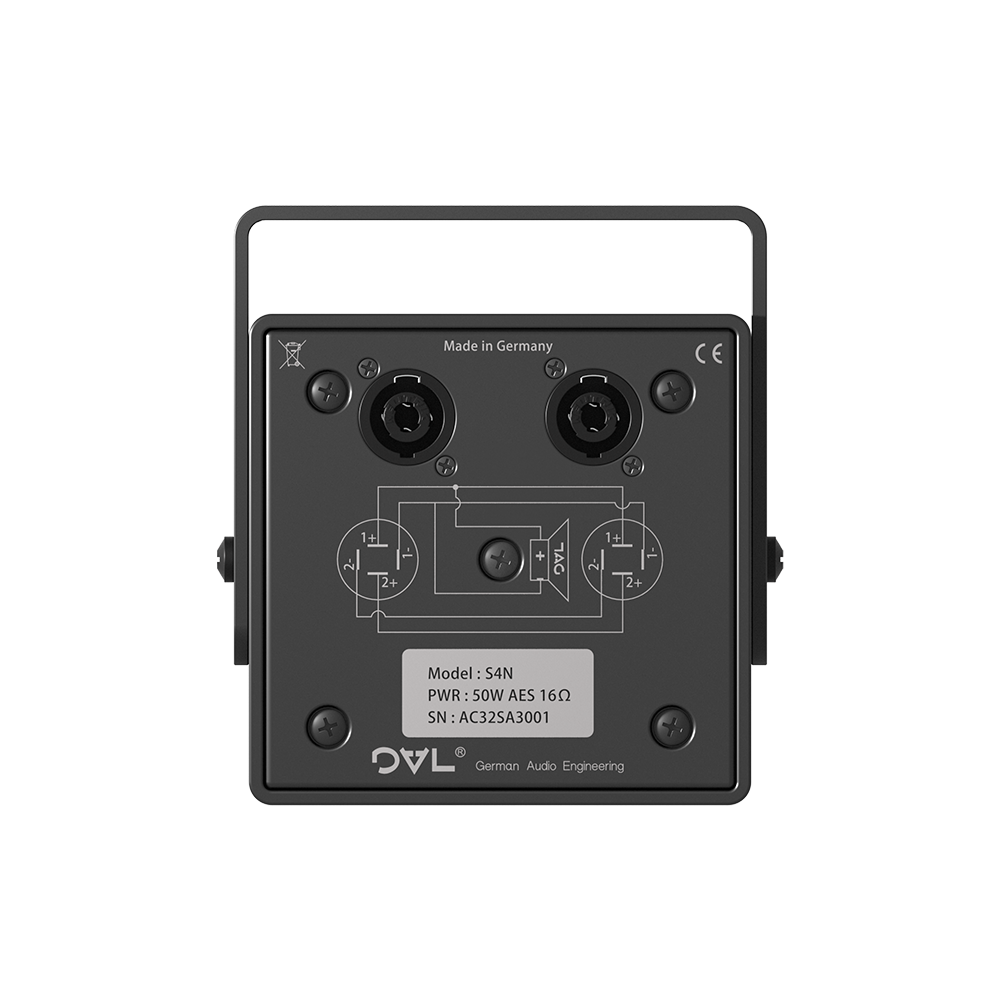

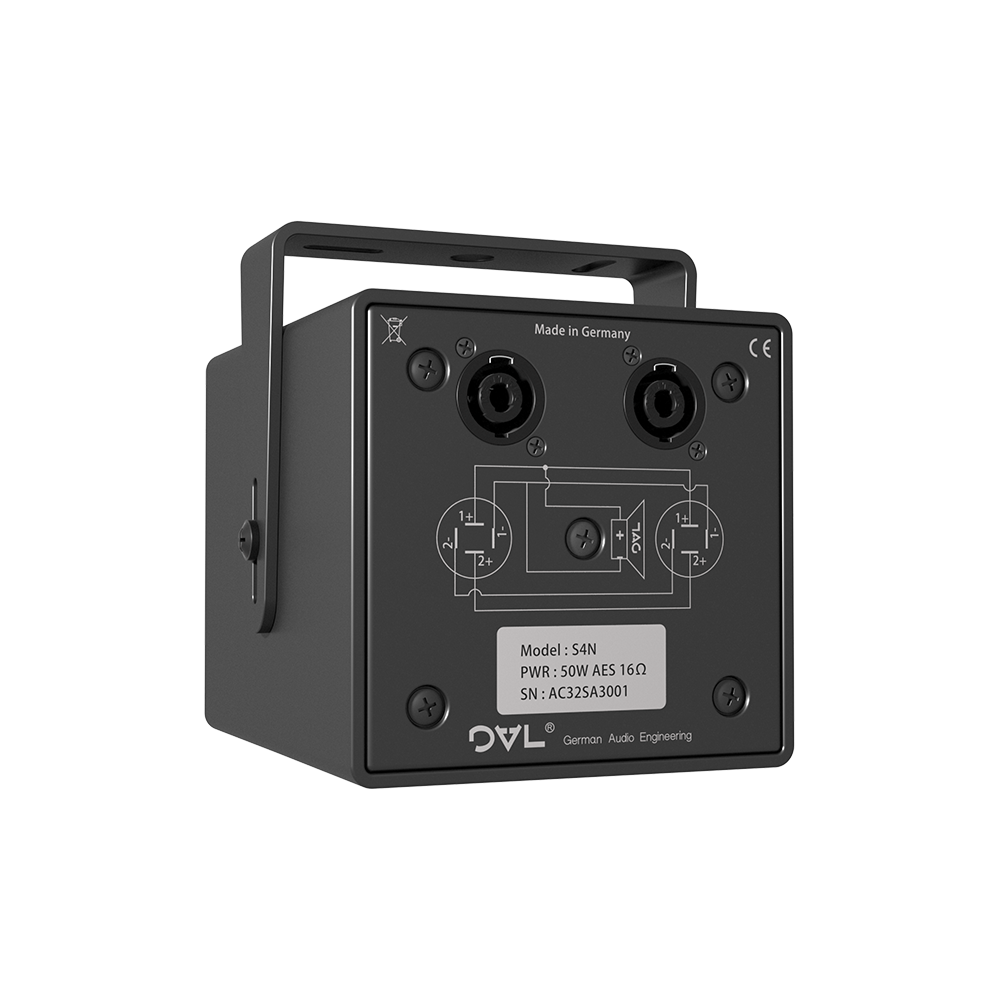

▪ Connectivity S4N: 2 x Speakon™ NL4 1+/1- alternative 2+/2-

▪ Connectivity i4N: 2 x 2 pole screw terminal

▪ Recommended Control & Drive System: DAL DS-4S

▪ For operation recall the following controller setups for DAL DS-4S: S4N-FR

▪ S4NFR/i4NFR: Full Range stand - alone operation, spaced arrays

▪ Parallel connection of multiple S4N/i4N systems and DAL Control & Drive

▪ Systems: DS-4S is 6 systems S4N/i4N per channel

Product description

The S4N and the i4N systems are small sized point sources with a high efficient broadband cone transducer in a closed cabinet. The cabinet is made from aluminium extrusion with a two component PU varnish coating available in all RAL colours on request. The cabinet includes a mounting yoke for suspended installations. Appropriate control settings of a DAL Control & Drive System are provided for the necessary equalisation of the broadband transducer. The S4N and i4N offering sufficient headroom for equalisation probably necessary for paging applications in evacuation systems. The full metal cabinet and protective grill enables the opportunity to acquire local fire resistance approval by handling authorities. The Variants providing different connectivity. The system is protected by a robust grille with outside foam cover.

The S4N and i4N systems are primarily intended for distributed installations, but can also be used for near field monitoring with appropriate equalisation. In stand-alone or spaced array operation it can be used as an effect speaker or in museum displays. Due to its neutral reproduction characteristics and the high maximum SPL Level, it is equally suitable for speech and music transmission. For low end support, the DAL Sub-Low system, BR8N is suitable. The 4N systems are featuring an efficient 4" NDym cone transducer with 1"voice coil and weather protected cone. With an internal heat sink, coupling transducer and cabinet, the 4N system is providing an AES power handling of 50W for an audio bandwidth of 130Hz - 16KHz with a Peak power handling of 100W and a peak SPL of 110db/SPL/1m.

The 4N systems should be operated with the DAL Control & Drive Systems. When operated with the DAL Control & Drive System, the system is parametrized for sonic quality and protected for maximum continuous and peak sound pressure levels.

The S4N/i4N offers a wide radial dispersion of 120° from 500Hz to 5000Hz.

For 70/100V Line operation with a third party amp and control system a variant with transformer (i4N-100) is available.
